Differential Draining And Filling (G1895876)

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

54.25.01

FRONT FINAL DRIVE UNIT - DRAIN AND REFILL

ALL DERIVATIVES

0.70

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

CAUTION:

Do not fill the differential with lubricant up to the filler plug. The filler plug is only used to fill the differential with lubricant, and not to act as a level indicator.
Make sure that the area around the component is clean and free of foreign material.

NOTE:

The only way to check the fluid level in the differential is to drain all the fluid out and refill with the correct quantity, shown in the specifications. For additional information, Refer to: SPECIFICATIONS
Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
For additional information, Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

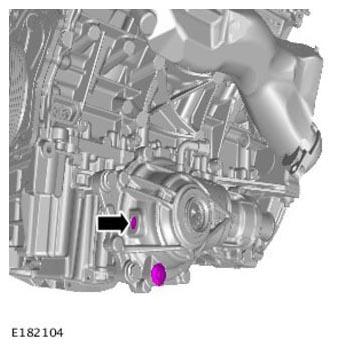

Remove the front differential fill plug.
WARNING: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

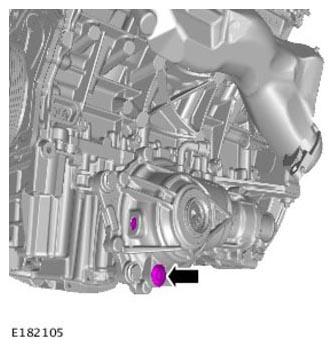

Remove the front differential drain plug.
Allow the fluid to drain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE: 32 Nm Front differential drain plug
CAUTION: Make sure the correct specification and quantity of oil is used.

Fill the differential with the correct amount of lubricant. For additional information, Refer to: SPECIFICATIONS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE: 32 Nm Front differential fill plug
For additional information, Refer to: ENGINE UNDERSHIELD
