Oil Pan (G2244089): Installation
-
NOTE: This step is only required if the component has previously been removed.
- Install a new oil level sensor O-ring seal.
Renew Part: Oil level sensor O-ring seal(s) Quantity: 1 .
- Install the oil level sensor.
- Install and tighten the 3 bolts.
Torque : 11Nm
- Install a new oil level sensor O-ring seal.
-
CAUTION: Make sure that the mating faces are clean and free of foreign material.
- Using a suitable plastic scraper clean the remaining sealing material from the mating surfaces.
- Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown above, and tighten the oil pan retaining bolts within 7 minutes.
Refer to: SPECIFICATIONS .
-
CAUTION: Make sure that the mating faces are clean and free of foreign material.
- Using a suitable plastic scraper clean the remaining sealing material from the mating surfaces.
- Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown above, and tighten the oil pan retaining bolts within 7 minutes.
Refer to: SPECIFICATIONS .
Carefully install the oil pan into the correct position.
-
Install the oil pan in the sequence illustrated.
-
CAUTION: Install the bolts in the positions noted on removal.
Install and tighten the 16 bolts finger tight only at this stage.
-
Tighten the 16 bolts in the illustrated sequence.
Torque : 25Nm
Install the wiring harness bracket and secure with the 2 clips.
Install and tighten the 4 bolts on the rear of the engine assembly.
Torque : 12Nm
-
CAUTION: Make sure that the mating faces are clean and free of foreign material.
Apply RTV sealant (Loctite 5901G) in a 2-3 mm diameter to the areas shown above, and tighten the front cover retaining bolts within 7 minutes.
Refer to: SPECIFICATIONS .
-
CAUTION: Make sure that the mating faces are clean and free of foreign material.
Install a new front cover using the special tool.
Special Tool(s) : 303-1433
Renew Part: Lower timing cover Quantity: 1 .
-
NOTE: Special tools shown below removed for clarity.
Install and tighten the 4 bolts as illustrated finger tight only at this stage.
-
NOTE: Special tools shown below removed for clarity.
Fully tighten the 4 bolts in the sequence illustrated.
Torque : 12Nm
-
NOTE: Special tools shown below removed for clarity.
- Install and tighten the 8 bolts.
Torque : 12Nm
- Remove the special tool from the front cover.
Special Tool(s) : 303-1433
- Install and tighten the 8 bolts.
Secure the 4 wiring harness clips.
- Secure the 2 wiring harness clips.
- Connect the oil level sensor electrical connector.
- Install the Crankshaft Position (CKP) sensor.
- Install and tighten the bolt.
Torque : 10Nm
Connect the CKP sensor electrical connector.

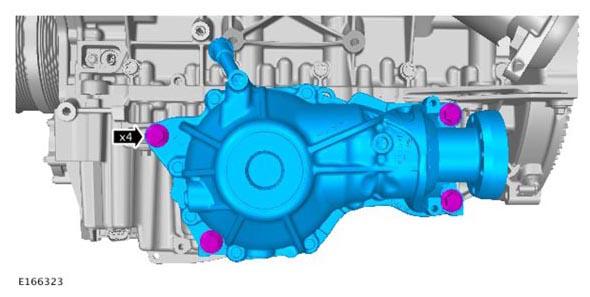

Install the front differential assembly and tighten the 4 bolts.
Torque : 115Nm
-
NOTE: Lubricate the high pressure (HP) fuel pump tappets with clean engine oil.
Install the High Pressure (HP) fuel pump tappets.
-
NOTE: Lubricate the HP fuel pump O-ring seal with clean engine oil.
Install the HP fuel pump and tighten the 2 Torx screws a turn at a time until the correct torque is achieved.
Torque : 11Nm
-
NOTE: Lubricate the HP fuel pump O-ring seal with clean engine oil.
Install the HP fuel pump and tighten the 2 Torx screws a turn at a time until the correct torque is achieved.
Torque : 11Nm
Install the HP fuel pump covers.
-
CAUTION: Lubricate only the union threads with clean engine oil.
- Install new HP fuel delivery lines.
Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
- Tighten the 2 bolts and the 2 unions finger tight only at this stage.
- Install new HP fuel delivery lines.
-
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Fully tighten the bolts and unions in the sequence as illustrated.
Torque
Unions (1): 21Nm
M6 bolt (2): 11Nm
M8 bolt (3): 25Nm
- Wait 30 seconds and check the tightness of the 2 HP fuel line unions.
Torque : 21Nm
- Wait 30 seconds and check the tightness of the 2 HP fuel line unions.

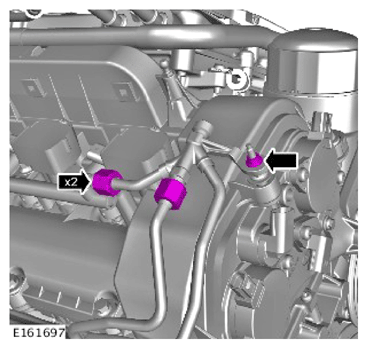

- Install the HP fuel pump delivery lines.
- Tighten the 2 unions finger tight only at this stage.
Install and tighten the bolt.
Torque : 12Nm
- Fully tighten the 2 unions.
Torque : 21Nm
- Fully tighten the 2 unions.
- Install the fuel line cover.
- Install and tighten the 2 bolts.
Torque
M10 bolt: 29Nm
M6 bolt: 11Nm

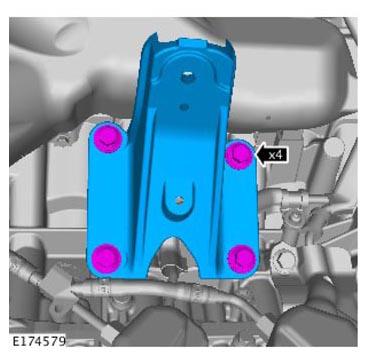

- Install the engine mount bracket.
- Install and tighten the 4 bolts.
Torque : 48Nm
Install the wiring harness into the correct position.
Secure the 2 wiring harness clips.
Secure the wiring harness clip.
- Connect the 2 electrical connectors.
-
NOTE: Install the nut and unions finger tight before final tightening.
- Install and tighten the 2 unions.
Torque : 21Nm
- Install and tighten the nut.
Torque : 6Nm
- Install and tighten the 2 unions.
- Install and tighten the 2 unions.
Torque : 21Nm
- Install and tighten the 4 bolts.
Torque : 8Nm
- Install and tighten the 2 unions.
Wait 30 seconds and check the tightness of the 2 unions.
Torque : 21Nm
Secure the wiring harness clip.
- Install the idler pulley.
- Install and tighten the 3 bolts.
Torque : 25Nm
-
NOTE: Lubricate the seal with clean engine oil.
- Install a new O-ring seal to the vacuum pump.
Renew Part: Brake vacuum pump O-ring seal Quantity: 1 .
- Install the vacuum pump.
- Install and tighten the 2 bolts.
Torque : 12Nm
- Install a new O-ring seal to the vacuum pump.
-
CAUTION: Install all the bolts finger tight before final tightening.
Install the generator and tighten the 3 bolts in the illustrated sequence.
Torque : 48Nm
Connect the generator electrical connector.
Install the generator positive cable and tighten the nut.
Torque : 12Nm
Install the generator positive cable cover.
-
CAUTION: Inspect the seal, install a new component if damaged.

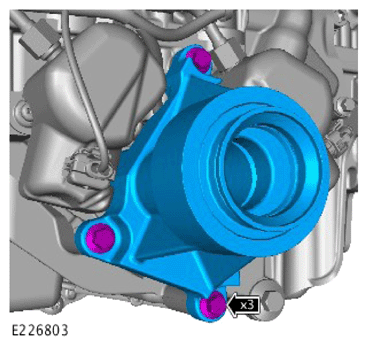

Install the front halfshaft support bearing and tighten the 3 bolts.
Torque : 25Nm
Install the special tool and tighten the 2 bolts.
Special Tool(s) : JLR-303-1304
Torque : 10Nm
-
NOTE: Make sure the crankshaft and drive plate mating faces are clean before installation.
- Install the drive plate in the correct position and tighten the 10 bolts.
Torque
Stage 1: 45Nm
Stage 2: 90°
- Release the 2 bolts from the special tool and remove the special tool.
Special Tool(s) : JLR-303-1304
- Install the drive plate in the correct position and tighten the 10 bolts.
- Apply RTV sealant to the crankshaft pulley keyway.
Refer to: SPECIFICATIONS .
- Make sure that the RTV sealant is applied in a 2 mm diameter bead.
- Make sure that the RTV sealant is applied level with the top of the keyway.
- Apply RTV sealant to the crankshaft pulley keyway.
-
NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.
- Install the crankshaft pulley.
Install the special tool.
Special Tool(s) : 303-1440
- Install the special tool.
Special Tool(s) : 303-1439
- Install and tighten the 4 special tool bolts.
Torque : 25Nm
- Install the special tool.
Install the special tool.
Special Tool(s) : 303-1441
- Rotate the crankshaft pulley installation tool until the pulley is fully located.
- Make sure the special tool is not over tightened, as this may result in damage to the components.
Remove the special tool.
Special Tool(s) : 303-1441
- Remove the 4 bolts from the special tool.
- Remove the special tool from the crankshaft pulley.
Special Tool(s) : 303-1439
Remove the special tool.
Special Tool(s) : 303-1440
-
NOTE: The original M10 bolts can be reused.
- Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.
Refer to: SPECIFICATIONS .
- Install and tighten the 2 crankshaft pulley bolts as illustrated.
Torque : 65Nm
- Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.
Install, but do not fully tighten the crankshaft pulley bolt.
Renew Part: Crankshaft pulley bolt Quantity: 1 .
Install the special tools.
Special Tool(s) : 303-1437, 303-1438
Install and tighten the 2 special tool bolts.
Torque : 25Nm
Using a suitable axle stand, support the special tools.
Special Tool(s) : 303-1437, 303-1438
General Equipment : Axle stands
- Remove the 2 special tool bolts.
- Remove the special tool.
Special Tool(s) : JLR-303-1304
-
NOTE: The use of a torque multiplier capable of 600 Nm will be required.
Tighten the crankshaft pulley bolt. Make sure that the socket is turned through 270 degrees not the torque wrench.
Torque
Stage 1: 200Nm
Stage 2: 270°
- Install the special tool.
Special Tool(s) : JLR-303-1304
- Install and tighten the 2 special tool bolts.
Torque : 10Nm
- Install the special tool.
Remove the special tools.
Special Tool(s) : 303-1437, 303-1438
-
NOTE: The original M10 bolts can be reused.
- Clean the original crankshaft pulley bolts and apply Loctite 270 to the threads before installation.
Refer to: SPECIFICATIONS .
- Install and tighten the 2 crankshaft pulley bolts as illustrated.
Torque : 65Nm
- Clean the original crankshaft pulley bolts and apply Loctite 270 to the threads before installation.
- Remove the 2 special tool bolts.
- Remove the special tool.
Special Tool(s) : JLR-303-1304

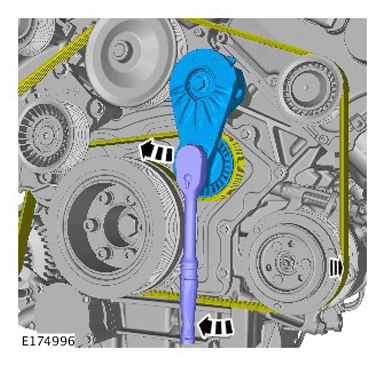

- Using a suitable tool release the tension from the accessory drive belt tensioner.
- Install the accessory drive belt over the crankshaft pulley.
- Allow the accessory drive belt to be fully tensioned and remove the tool from the accessory drive belt tensioner.
- Using a suitable tool release the supercharger belt tensioner assembly.
- Install the supercharger belt, make sure the supercharger belt is correctly located on each pulley.
- Allow the supercharger belt to be fully tensioned and remove the suitable tool from the tensioner assembly.
- Install the engine assembly.
Refer to: ENGINE - AWD .
- Fill the front differential oil.
Refer to: DIFFERENTIAL DRAINING AND FILLING .
- Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
- Fill the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .
