Drive Pinion Seal (G1914826): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the front differential.
Refer to: DIFFERENTIAL DRAINING AND FILLING
Remove the front driveshaft.
Refer to: FRONT DRIVESHAFT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

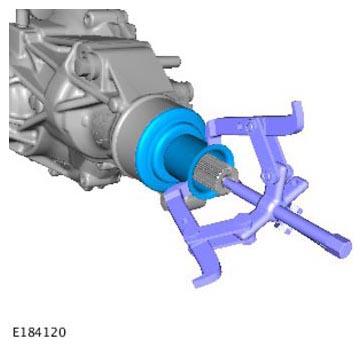

Using a suitable tool, remove the pinion sleeve.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

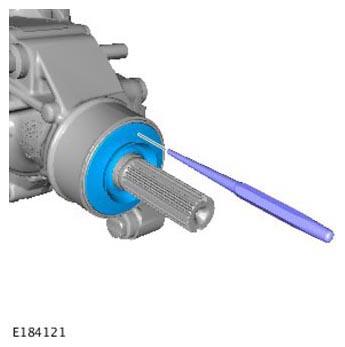

Using a center punch and hammer, pierce a hole in the seal at the 12 o'clock position.
WARNING: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

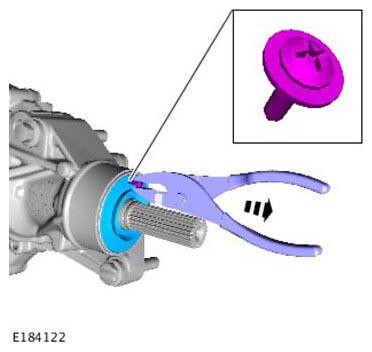

Screw a 2.5 x 15 mm self-tapping screw, a maximum of 2 turns into the input shaft seal and remove the seal using a pair of pliers.
