Drive Pinion Seal (G1914826): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

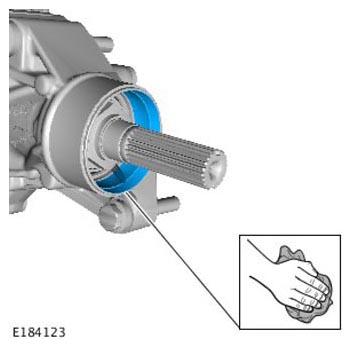

Clean the seal register and thoroughly inspect for damage.

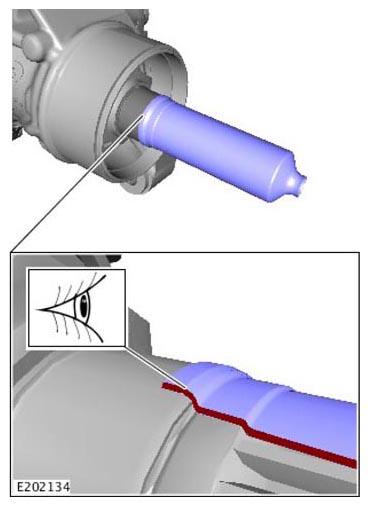

CAUTION: Make sure the seal protector sleeve fully covers the ridge on the pinion shaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the pinion seal protector sleeve over the pinion shaft.
CAUTION: This step must be completed by hand. Failure to follow this instruction may result in damage to the pinion seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

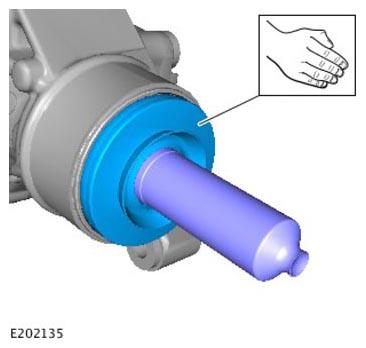

Carefully install the new pinion seal until evenly seated.

Renew Part: Front differential pinion repair kit Quantity: 1.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

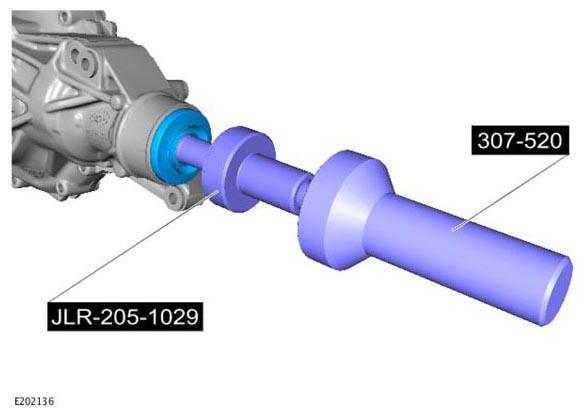

Using the special tools, fully install the pinion shaft seal.

Special Tool(s): JLR-205-1029 , 307-520
Remove the special tools.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

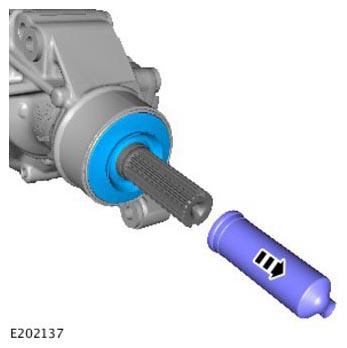

Carefully remove the protector sleeve.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

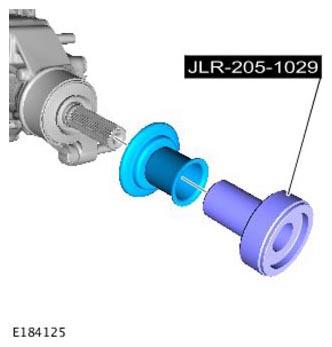

Using the special tool, install the cover.

Special Tool(s): JLR-205-1029
Install the front driveshaft.
Refer to: FRONT DRIVESHAFT
CAUTION: Make sure the correct specification and quantity of oil is used.

Fill the front differential.

Refer to: DIFFERENTIAL DRAINING AND FILLING
