Differential Vehicles Without Heavy Duty Differential - INGENIUM I4 2.0L Diesel/INGENIUM I4 2.0L Petrol (G2131354): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping oil.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL

Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL

Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the Emergency Park Release (EPR).
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Drain the rear differential oil.
Refer to: DIFFERENTIAL DRAINING AND FILLING VEHICLES WITHOUT HEAVY DUTY DIFFERENTIAL
Remove the exhaust system.
Refer to: EXHAUST SYSTEM VEHICLES WITHOUT: DIESEL EXHAUST FLUID

Refer to: EXHAUST SYSTEM V6 S/C 3.0L PETROL

Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL EXHAUST FLUID

Refer to: EXHAUST SYSTEM INGENIUM I4 2.0L PETROL

Refer to: EXHAUST SYSTEM V8 S/C 5.0L PETROL
Remove the 2 rear halfshafts.
Refer to: REAR HALFSHAFT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

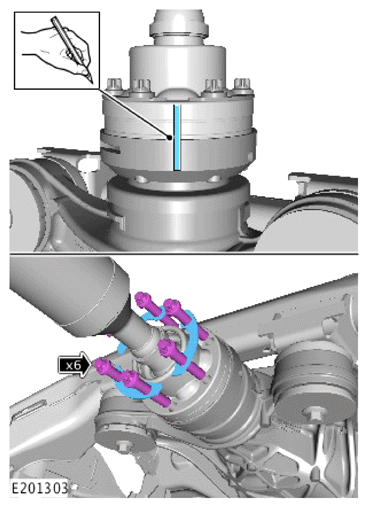

- Mark the position of the driveshaft in relation to the differential drive flange.
- Remove and discard the 6 driveshaft to differential drive flange bolts.
- Remove the 3 washers.
CAUTION: Make sure the tool is correctly installed in the groove on the driveshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool and release the driveshaft from the rear differential drive flange.

Special Tool(s): 205-932
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

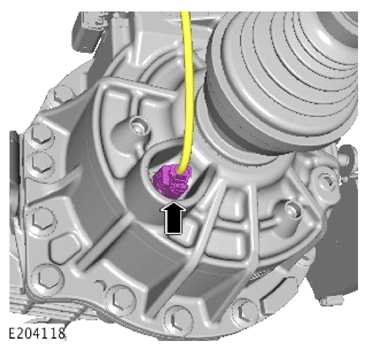

Disconnect the oil temperature sensor.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

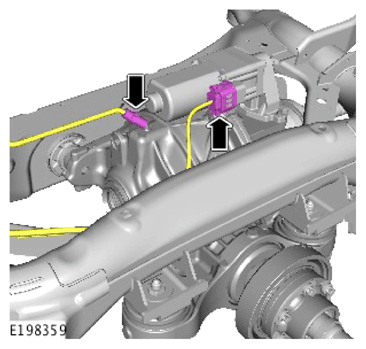

Disconnect the breather and the locking motor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

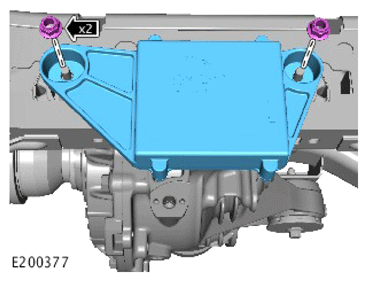

Remove the 2 nuts and the vibration damper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

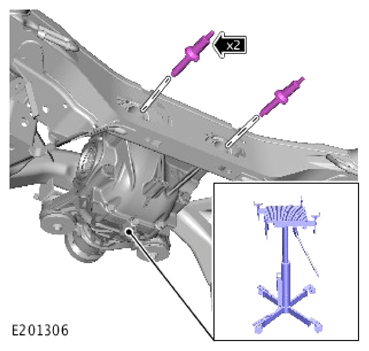

- Position a suitable transmission jack below the rear differential case.
  General Equipment: Transmission jack
- Remove the 2 rear differential case mounting bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

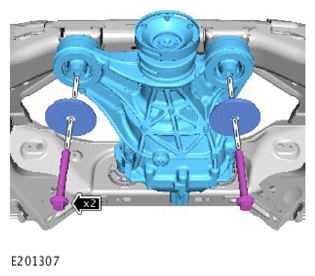

Remove the 2 front differential case mounting bolts and remove the differential case.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

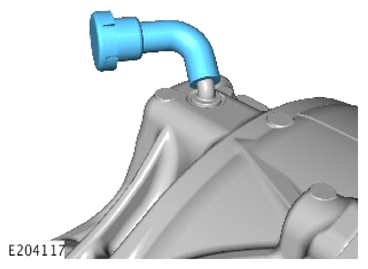

Remove and discard the breather.
