Exhaust System - Vehicles Without: Diesel Exhaust Fluid: Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

Removal steps in this procedure may contain installation details.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

The following step(s) applies to:

All vehicles

Raise and support the vehicle.
Refer to: LIFTING

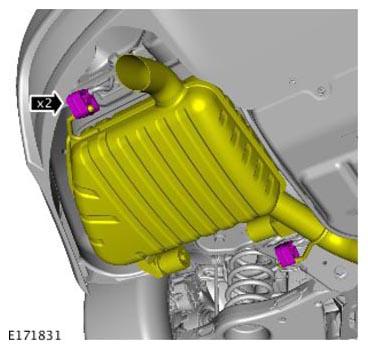

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 30Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7Nm

The following step(s) applies to:

NAS vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles

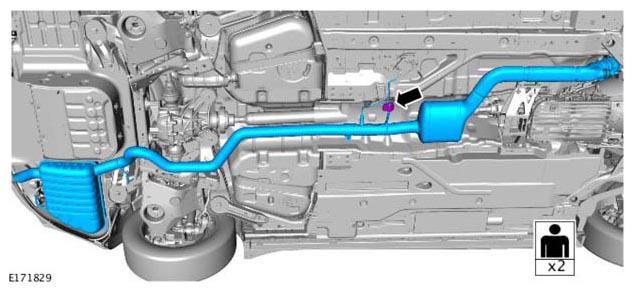

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40Nm

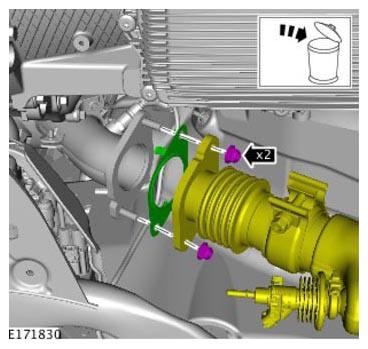

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48Nm

The following step(s) applies to:

NAS vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48Nm
