Catalytic Converter To Turbocharger Clamp (G1964842): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

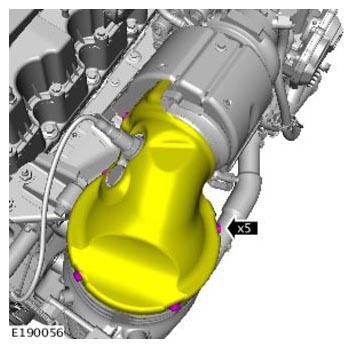

- Remove the heat shield.
- Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using suitable cutting/grinding equipment remove the clamp weld at the points illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the clamp.
Torque : 13Nm
