Catalytic Converter (G1868614): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the exhaust system.
Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL EXHAUST FLUID

Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL EXHAUST FLUID
WARNING: Make sure that the exhaust system is supported with suitable retaining straps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Remove and discard the exhaust gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

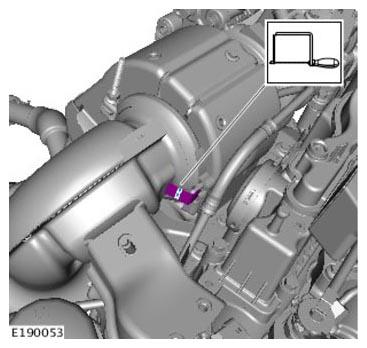

Using a suitable tool cut the bracket in the highlighted area.
CAUTION: Do not use power tools to remove or install the clamp.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

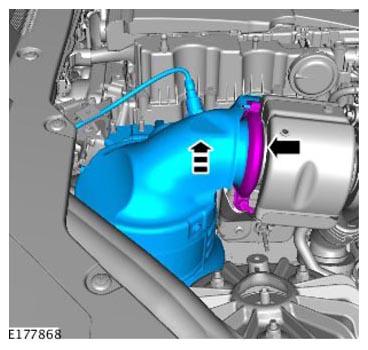

- Remove the catalytic converter.
- Remove and discard the clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool, remove the Heated Oxygen Sensor (HO2S).

Special Tool(s): 310-121
