Catalytic Converter (G1868614): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

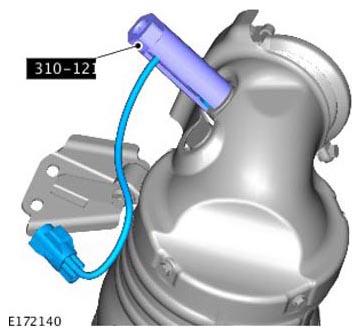

Using the special tool, install the Heated Oxygen Sensor (HO2S).

Special Tool(s): 310-121

Torque : 48Nm

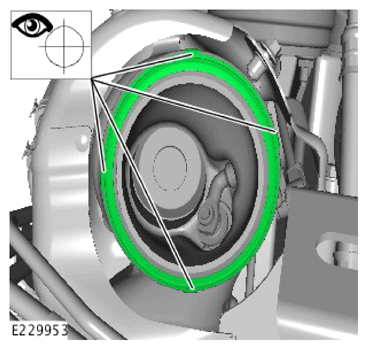

CAUTION: The catalytic converter to turbocharger gasket must be installed to the orientation shown in the illustration.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new catalytic converter to turbocharger gasket.

Renew Part: Catalytic converter to turbocharger gasket Quantity: 1 .
Install the catalytic converter.
CAUTION:
- Do not use power tools to remove or install the clamp.
- Only tighten the nut finger tight at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

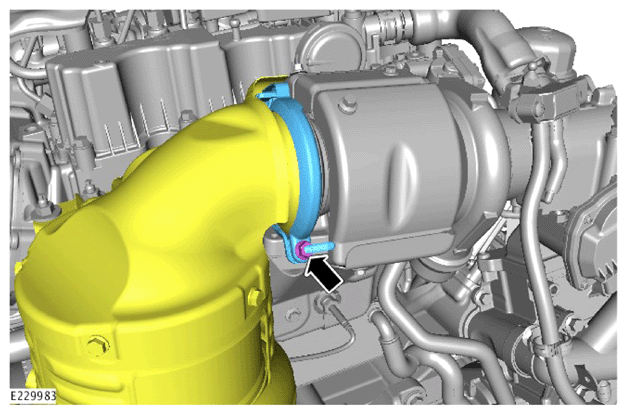

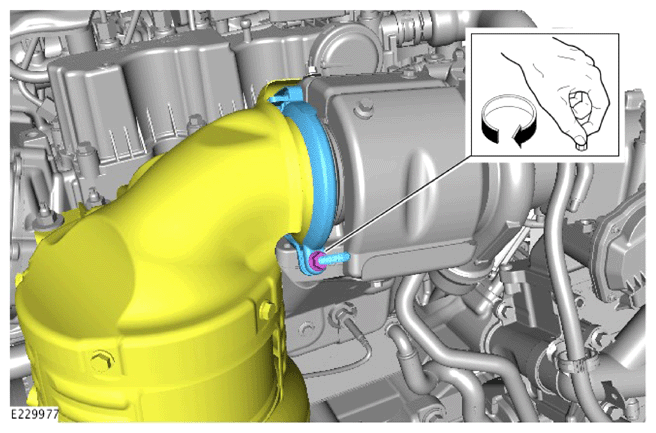

Install a new catalytic converter to turbocharger clamp but do not fully tighten at this stage.

Renew Part: Catalytic converter to turbocharger clamp Quantity: 1 .
CAUTION: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

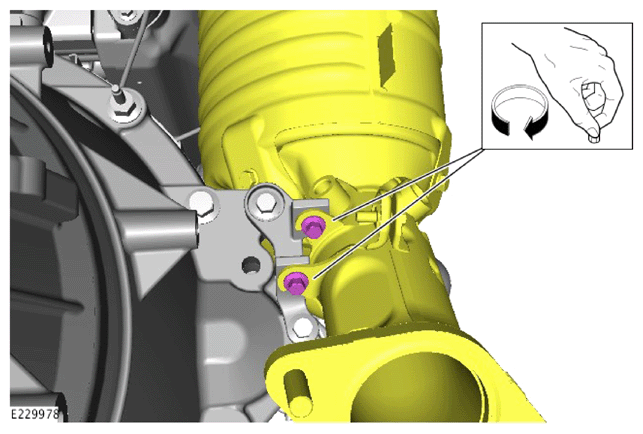

Install the 2 catalytic converter lower bracket bolts but do not tighten at this stage.
CAUTION: Only tighten the nuts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

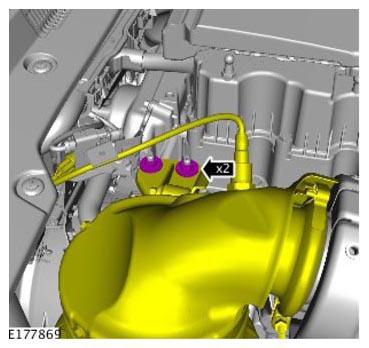

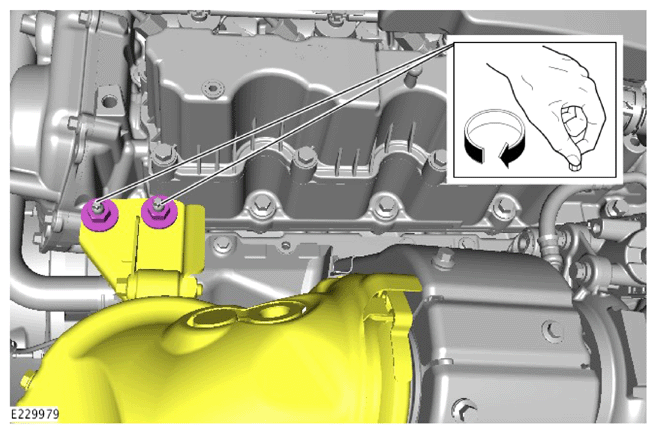

Install the 2 catalytic converter upper bracket nuts but do not tighten at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the catalytic converter to the turbocharger clamp.

Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 2 catalytic converter upper bracket nuts.

Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

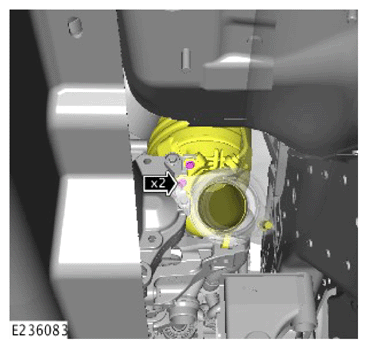

Tighten the 2 catalytic converter lower bracket bolts.

Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

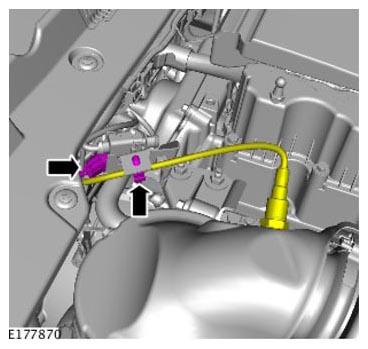

- Connect the electrical connector.
- Secure the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

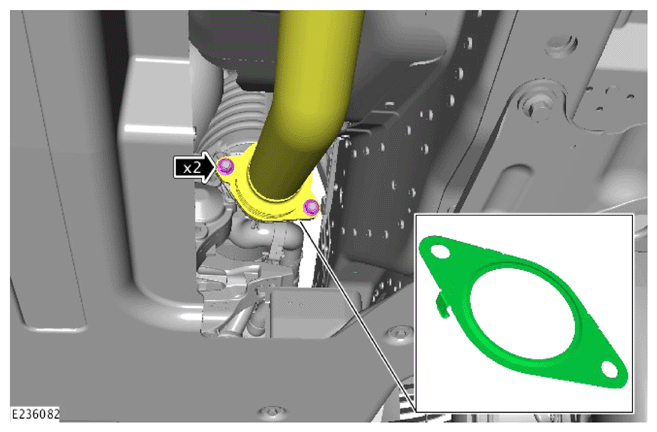

- Install a new gasket.
  Renew Part: Diesel Particulate Filter (DPF) to exhaust gasket Quantity: 1 .
- Install and tighten the 2 nuts.
  Torque : 40Nm
Install the exhaust system.
Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL EXHAUST FLUID

Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL EXHAUST FLUID
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
