Exhaust Gas Temperature Sensor - INGENIUM I4 2.0L Diesel - High Power (G2294816): Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the catalytic converter.
Refer to: CATALYTIC CONVERTER

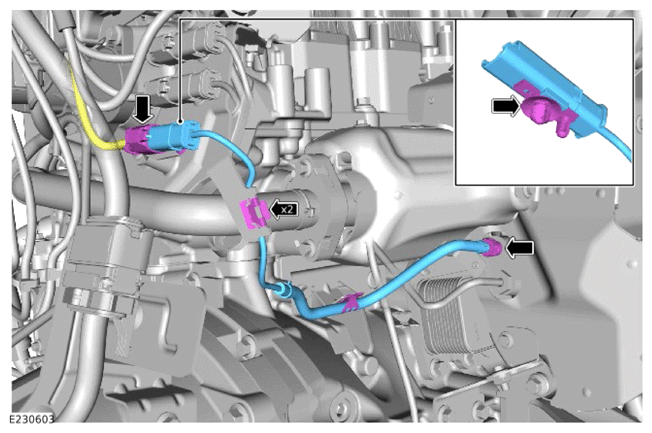

- Release the electrical connector clip.
- Disconnect the electrical connector.
- Release the 2 wiring harness clips.
- Remove the exhaust gas temperature sensor.
