Exhaust Gas Pressure Sensor (G2454403): Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the catalytic converter.
Refer to: CATALYTIC CONVERTER AND DIESEL PARTICULATE FILTER ASSEMBLY

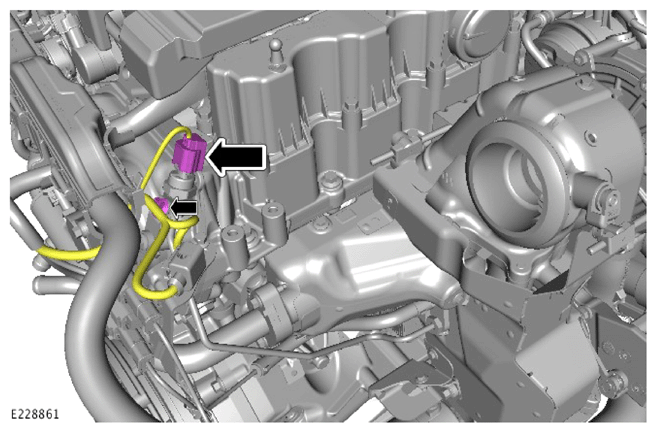

- Disconnect the exhaust gas pressure sensor electrical connector.
- Release the clip.

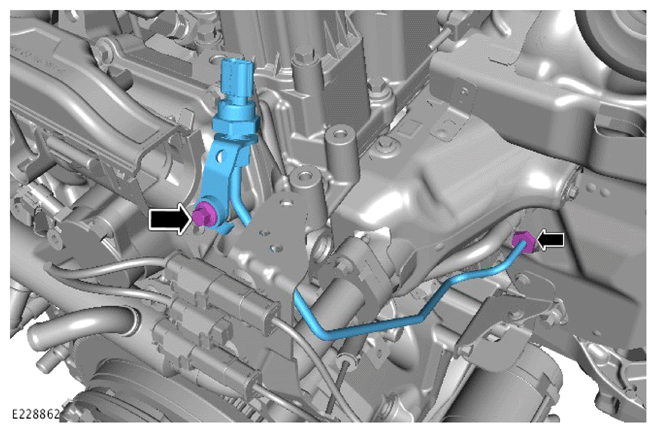

- Loosen the exhaust gas pressure sensor nut.
- Remove the bolt.
- Remove the exhaust gas pressure sensor.
