Exhaust Manifold - INGENIUM I4 2.0L Diesel - Mid, Low Power (G1817151): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the turbocharger.
Refer to: TURBOCHARGER - INGENIUM I4 2.0L DIESEL - MID, LOW POWER

The following step(s) applies to:

Vehicles with diesel particulate filter (DPF)
Remove the catalytic converter and Diesel Particulate Filter (DPF) assembly.
Refer to: CATALYTIC CONVERTER AND DIESEL PARTICULATE FILTER ASSEMBLY

The following step(s) applies to:

Vehicles without diesel particulate filter (DPF)
Remove the catalytic converter assembly.
Refer to: CATALYTIC CONVERTER

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

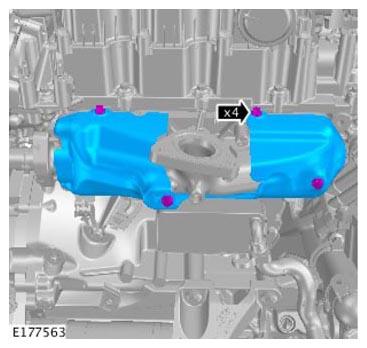

Remove the heatshields.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

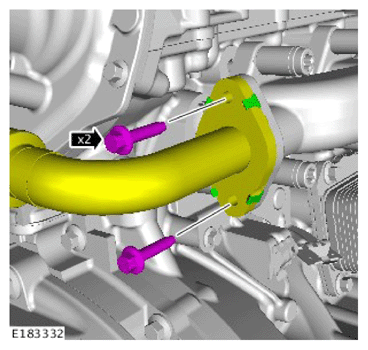

1. Release the Exhaust Gas Recirculation (EGR) pipe.
2. Remove and discard the gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

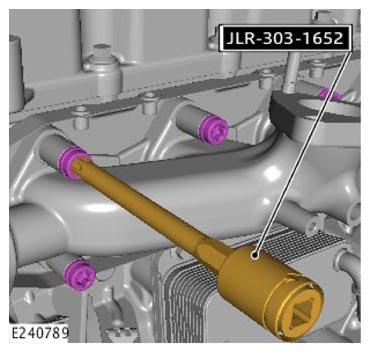

Use the special tool to remove the exhaust manifold bolts.

Install the Special Tool(s): JLR-303-1652
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Remove the exhaust manifold.
2. Remove and discard the gasket.
  Remove the Special Tool(s): JLR-303-1652
