Exterior Surface Zone Identification (G1821389)

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

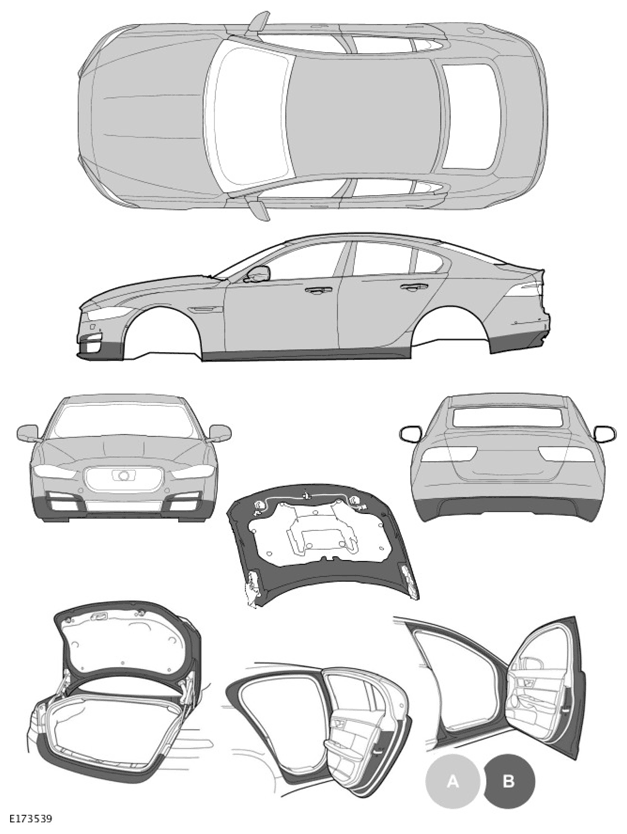

G11305401Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = Medium to High visibility; B = Low to Hidden visibility
