Driveshaft - INGENIUM I4 2.0L Diesel (G1817225): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

The following step(s) applies to:

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Remove the exhaust system.
Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL EXHAUST FLUID

Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL EXHAUST FLUID

The following step(s) applies to:

Vehicles with manual transmission
CAUTION: Make sure that NEUTRAL is selected before starting this procedure.

The following step(s) applies to:

Vehicles with automatic transmission
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11Nm
The following step(s) applies to:

Vehicles with automatic transmission
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm

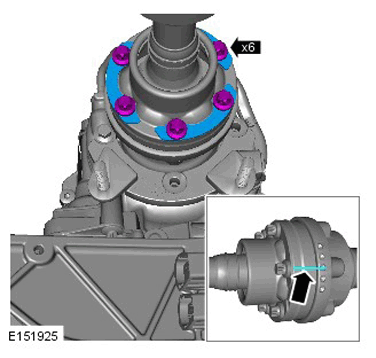

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Mark the position of the driveshaft flange in relation to the output flange.
- Remove and discard the 6 output flange bolts.
Renew Part: Driveshaft to front output flange bolts Quantity: 6.

Torque : 73Nm
WARNING: Make sure that the special tool is installed and used correctly. This will help prevent serious injury and damage to the vehicle and equipment.
CAUTION:
- Support the driveshaft at all times to prevent the damage to the centre bearing.
- Using a suitable hammer and drift, make sure to only hit the corner edges of the special tool to remove the driveshaft.
- Care must be taken when handling the Constant Velocity joint (CV) joint. Failure to follow this instruction may disassemble the CV joint.

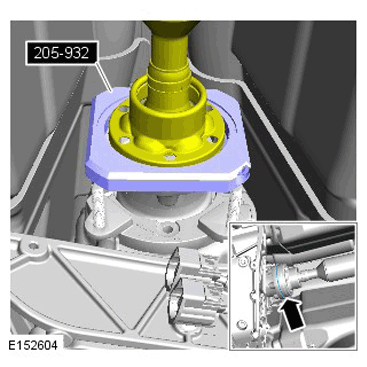

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): 205-932
- Using the special tool, disconnect the rear driveshaft.
- Remove the special tool.
Special Tool(s): 205-932
Disconnect the driveshaft from the rear differential.
Refer to: DRIVESHAFT TO REAR DIFFERENTIAL DISCONNECTION

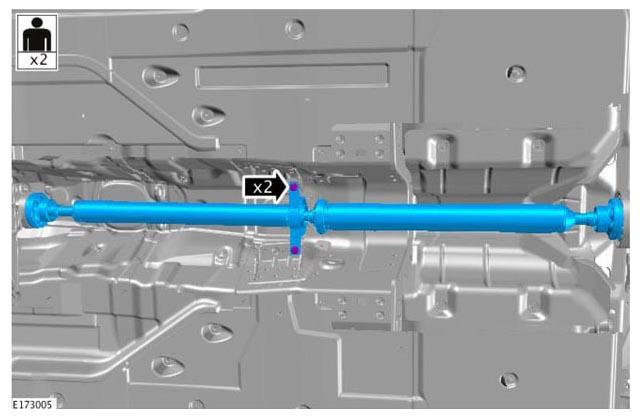

WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 47.5Nm
