Side Air Curtain Module (G1818499): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module.
  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
  • Do not probe supplemental restraint system (SRS) electrical connectors.
NOTE: Removal steps in this procedure may contain installation details.
  1. Make the supplementary restraint system (SRS) system safe.

    Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS

  2. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Refer to: HEADLINER

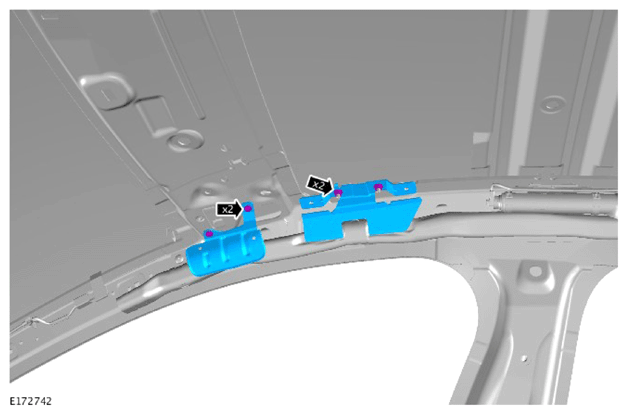

  4. G14011978Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

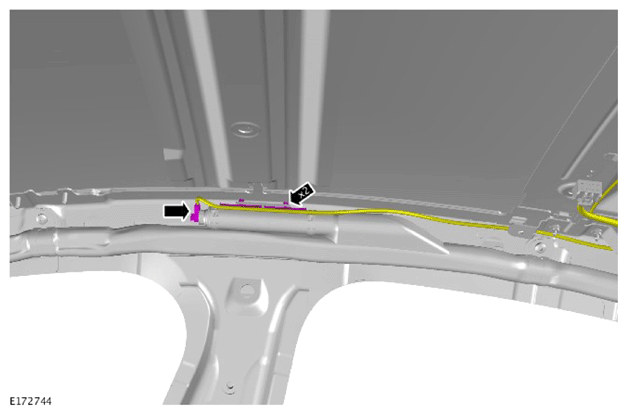

  5. G14011979Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION: Do not allow the side air curtain module to twist. Failure to follow this instruction may result in damage to the component.

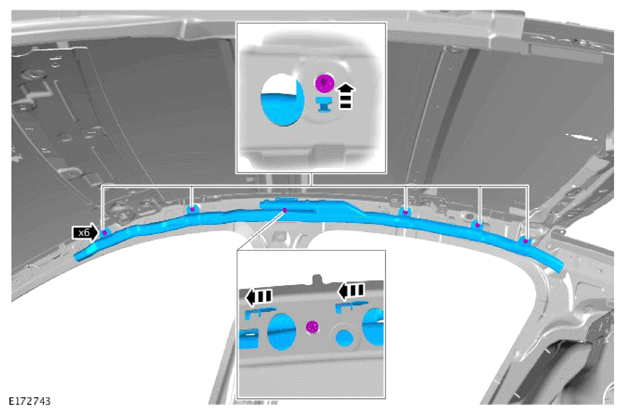

    G14011980Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm
