Restraints Control Module (G1818498): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
- Do not probe supplemental restraint system (SRS) electrical connectors.
NOTE:
- New restraints control module (RCM) must be installed every time if any supplementary restraint system (SRS) component has been deployed.
- Removal steps in this procedure may contain installation details.
- Make the supplementary restraint system (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Refer to: the appropriate Floor Console information

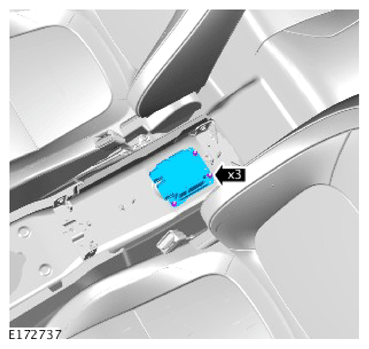

Torque : 11Nm
