Driver Airbag Module (G1818496): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

The following step(s) applies to:

Non NAS vehicles

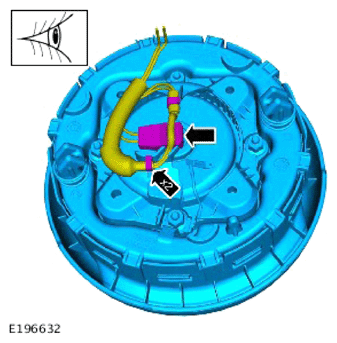

WARNING: Make sure the driver airbag wiring harness is installed to the retaining clips and located as highlighted in the illustration.

CAUTION: Take care not to damage the driver airbag wiring harness.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Install the driver airbag harness to the driver airbag.
The following step(s) applies to:

NAS vehicles

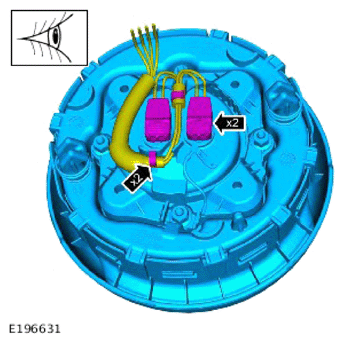

WARNING: Make sure the driver airbag wiring harness is installed to the retaining clips and located as highlighted in the illustration.

CAUTION: Take care not to damage the airbag wiring harness.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Install the driver airbag harness to the driver airbag.
The following step(s) applies to:

All vehicles

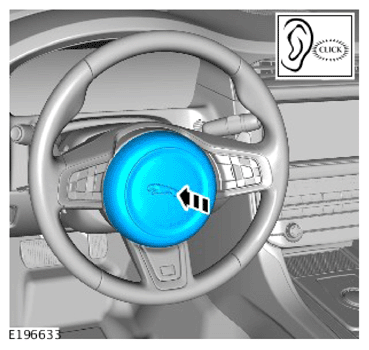

WARNING: Driver airbag installation can be confirmed by hearing 2 audible clicks, 1 for each clip.

CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the driver airbag.
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
