Driver Airbag - Project 8 (G2248426): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

The following step(s) applies to:

NAS vehicles

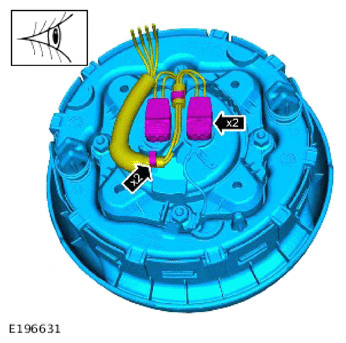

WARNING: Make sure the driver airbag wiring harness is installed to the retaining clips and located as highlighted in the illustration.

CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 2 electrical connectors.
- Secure the 2 wiring harness clips.
The following step(s) applies to:

Non NAS vehicles

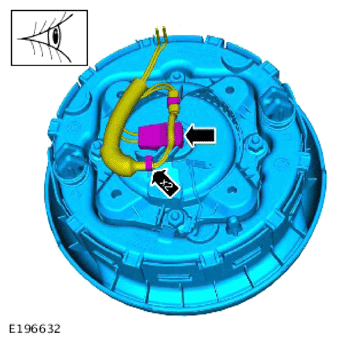

WARNING: Make sure the driver airbag wiring harness is installed to the retaining clips and located as highlighted in the illustration.

CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Secure the 2 wiring harness clips.
The following step(s) applies to:

All vehicles

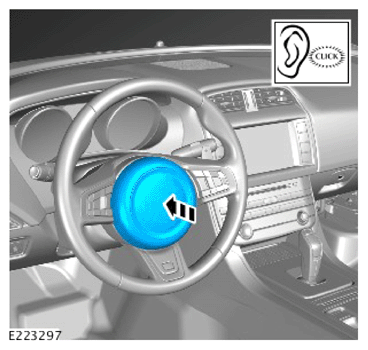

WARNING: Driver airbag installation can be confirmed by hearing 2 audible clicks, 1 for each clip.

CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the driver airbag.
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
If a new component has been installed, configure that component using the Jaguar Land Rover (JLR) approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
