CLOCKSPRING (G1818493): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module.
- Never probe the connectors on the air bag module. Doing so may result in air bag deployment, which may result in personal injury. Failure to follow this instruction may result in personal injury.
- To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
CAUTION:
- Make sure the wheels are in the straight-ahead position. Failure to follow this instruction may result in damage to the component.
- Use a suitable trim tool.
NOTE:
Removal steps in this procedure may contain installation details.
- Make the supplementary restraint system (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
- Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

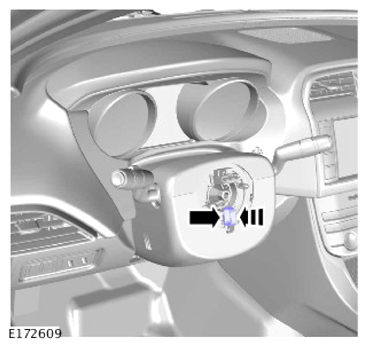

- Refer to: STEERING WHEEL

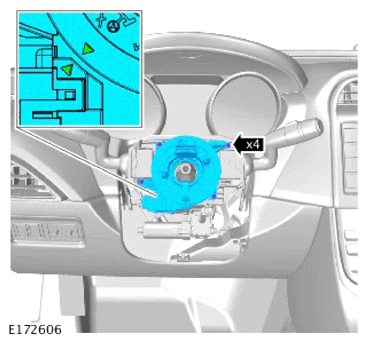

Torque : 1.9Nm
