Occupant Monitoring
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

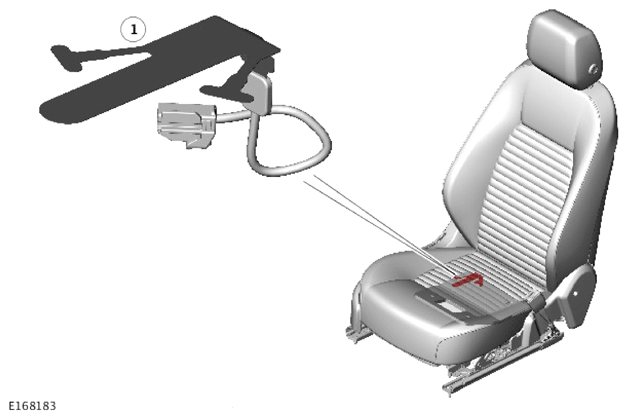

Occupant Detection Sensor
| ITEM | DESCRIPTION |
|---|---|
| 1 | Occupant detection sensor |
The occupant detection sensor is installed in the cushion of the front passenger seat, between the foam padding and the cover. The sensor consists of a foil contact circuit, embedded in a plastic sheet. Weight on the sensor reduces the resistance of the circuit, which is detected by the BCM/GWM.
The occupant detection sensor has no interface with the SRS. It only provides an input to the BCM/GWM for the seatbelt reminder function. For additional information, Refer to: SEATBELT SYSTEM
