Impact Pressure Sensor

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

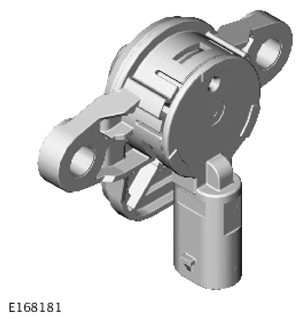

G14011895Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

An impact pressure sensor is installed in each front door, attached to the door closing panels. The pressure sensors allow the RCM to detect any sudden pressure pulse that occurs in the front door during a side impact.
