Driver Seat Position Sensor
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

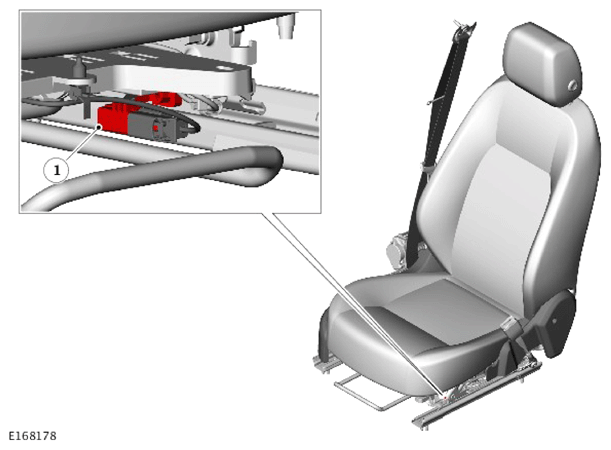

| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver seat position sensor |
The driver seat position sensor, a Hall effect sensor, is fitted to the underside of the driver's seat. The sensor is actuated by the target bracket attached to the seat slide. The disturbance caused when the target bracket passes the sensor creates an output signal for the RCM. On receipt of this signal, which indicates when the seat is forward of a defined point in its travel, the RCM disables the second stage output of the driver airbag.
