Airbag Warning Indicator
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

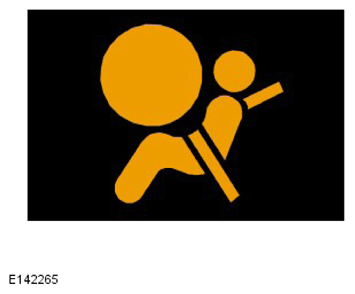

Operation of the airbag warning indicator in the IC is controlled by a High Speed (HS) Controller Area Network (CAN) powertrain bus systems message from the RCM. The RCM sends the signal to illuminate the airbag warning indicator if a fault is detected, and for approximately 6 seconds during the bulb check at the beginning of each ignition cycle.
