Control Diagram

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

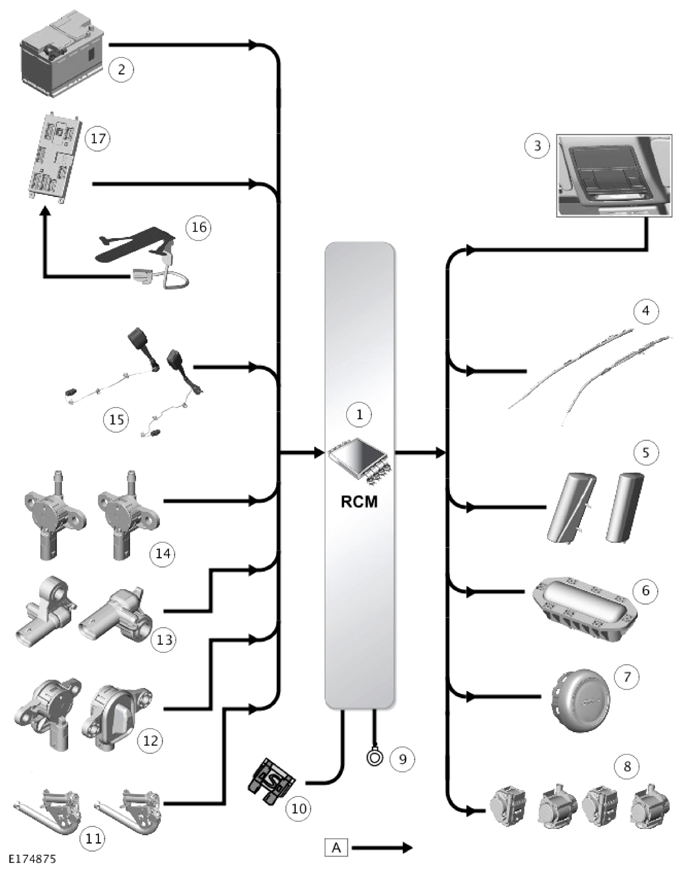

G14011898Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Restraints Control Module (RCM)
2 Battery
3 Passenger airbag deactivation indicator
4 Side air curtains
5 Side airbags
6 Passenger airbag
7 Driver airbag
8 Seatbelt retractor with pretensioner
9 Ground
10 Power supply
11 Pretensioner
12 Front impact sensor
13 Side impact sensor
14 Impact pressure sensor
15 Seatbelt buckle
16 Occupant detection sensor
17 Body Control Module/Gateway Module (BCM/GWM)
