Component Location

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Right Hand Drive (RHD) installation shown, Left Hand Drive (LHD) installation similar

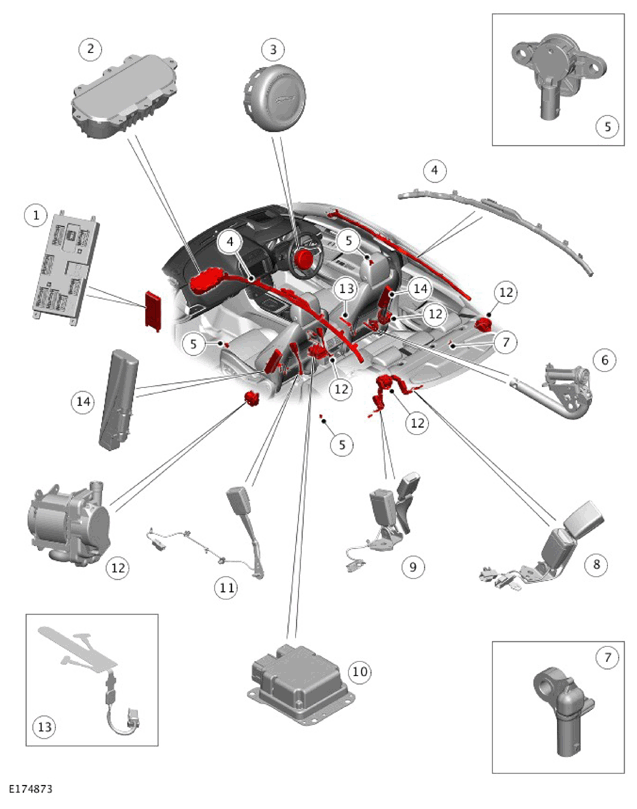

Location 1 of 2

G11312443Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Body Control Module/Gateway Module (BCM/GWM)
2 Passenger airbag
3 Driver airbag
4 Side air curtain - 2 of
5 Impact pressure sensor - 2 of
6 Driver seatbelt pretensioner
7 Side impact sensor - 2 of
8 Rear right and middle seatbelt buckle
9 Rear left seatbelt buckle with minibuckle
10 Restraint Control Module (RCM)
11 Front seatbelt buckle - 2 of
12 Seatbelt retractor - 4 of
13 Occupant detection sensor
14 Side airbag - 2 of

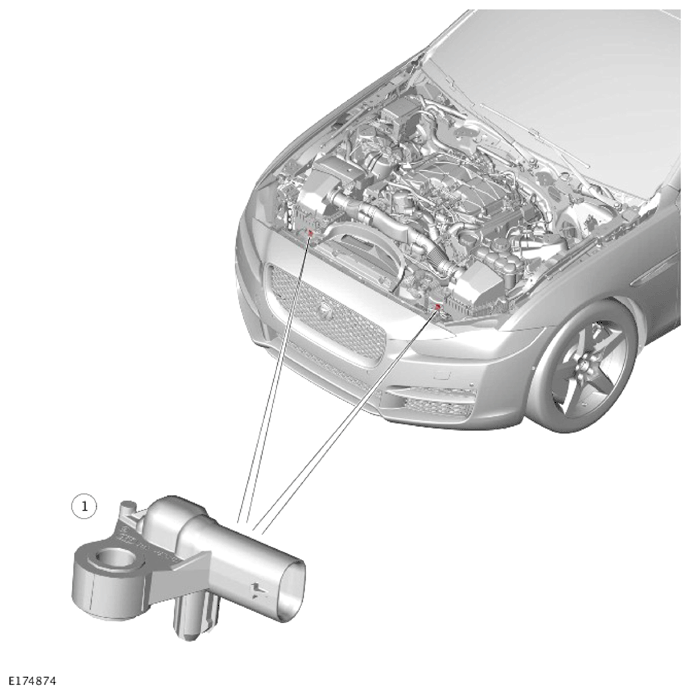

Location 2 of 2

G14011885Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Front impact sensor - 2 of
