Front HALFSHAFT - Project 8 (G2257051): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the differential.
Refer to: DIFFERENTIAL DRAINING AND FILLING
Remove the front wheel knuckle.
Refer to: WHEEL KNUCKLE - PROJECT 8, AWD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

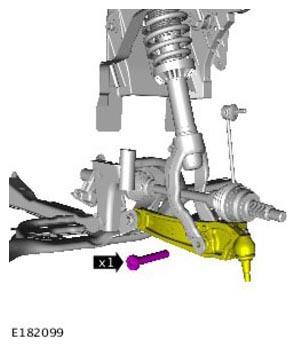

Remove and discard the yoke to lower control arm bolt and release the lower arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

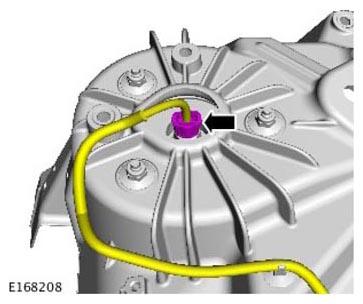

Disconnect the adaptive damper electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

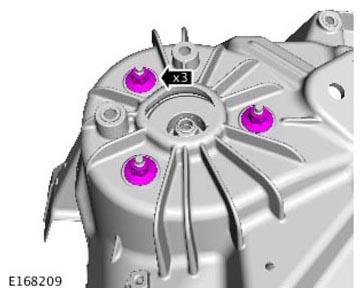

Remove and discard the upper shock absorber nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

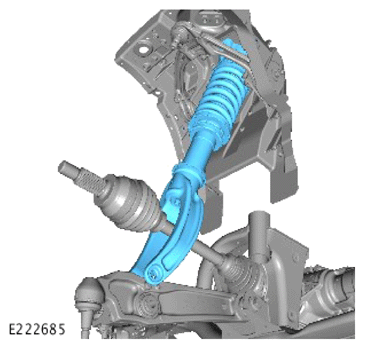

Remove the shock absorber from the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

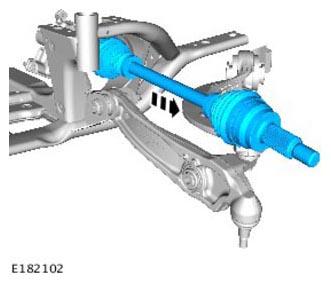

Remove the halfshaft.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the circlip.
