Front HALFSHAFT - Project 8 (G2257051): Installation
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

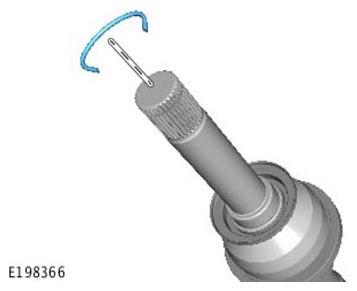

Install a new circlip.
Renew Part: Circlip Quantity: 1.
-

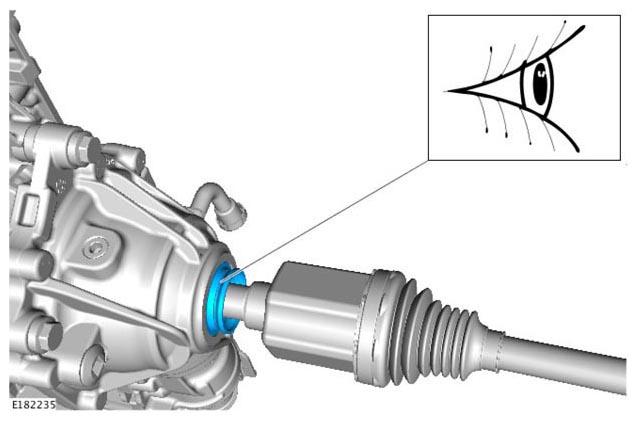

CAUTION: Take extra care not to damage the seal.
Install the halfshaft.
- Install the shock absorber to the vehicle.
- Install the new upper shock absorber nuts.
Renew Part: Shock absorber upper mounting nut Quantity: 3.
Torque : 30Nm
- Connect the adaptive damping electrical connector.
- Secure the yoke to the lower control arm and install a new bolt.
Renew Part: Yoke to lower arm bolt (s) Quantity: 1.
Torque
Stage 1: 60Nm
Stage 2: 120°
- Install the front wheel knuckle.
Refer to: WHEEL KNUCKLE - PROJECT 8, AWD
- Fill the differential.
Refer to: DIFFERENTIAL DRAINING AND FILLING
