Front HALFSHAFT (G1895699): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not touch the gaiter and when handling the halfshaft make sure that the gaiters does not touch any sharp component or object.
When handling the halfshaft, do not articulate the Constant Velocity joint (CV). Failure to follow this instruction may result in damage to the CV and gaiter.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle using a suitable 2 post lift.
Refer to: LIFTING
Drain the differential.
Refer to: DIFFERENTIAL DRAINING AND FILLING
Remove the front wheel knuckle for access only.
Refer to: WHEEL KNUCKLE - AWD

Refer to: WHEEL KNUCKLE - PROJECT 8, AWD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the bolt from the lower arm.
CAUTION: Discard the nut and bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

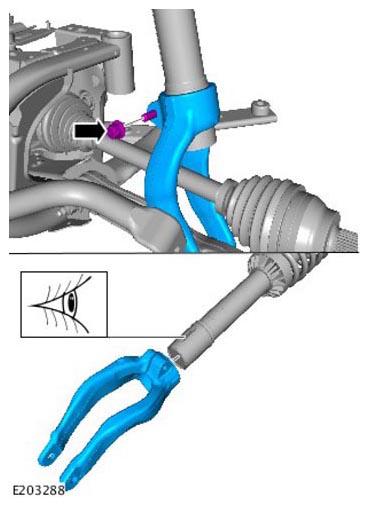

Remove the yoke from the shock absorber.
CAUTION:
- Take extra care when removing the halfshaft. Failure to follow this instruction might result in damage to the CV or the CV boot.
- Be prepared to collect escaping oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the halfshaft.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the halfshaft circlip.
