Transfer Case Rear Output Seal (G1569233): Installation

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Oil seals must be installed dry.
- Clean the seal register.

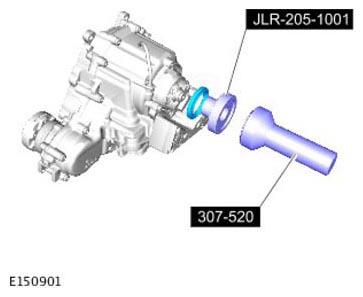

- Special Tool(s): JLR-205-1001, 307-520

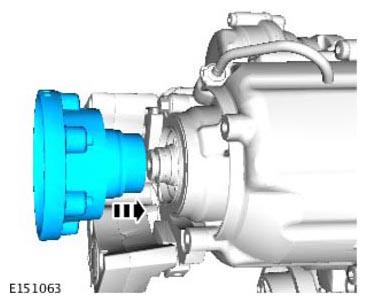

CAUTION: Install a new output flange.

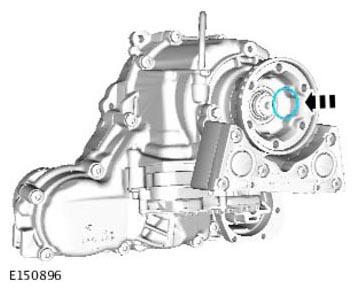

CAUTION: Install a new O-ring seal.

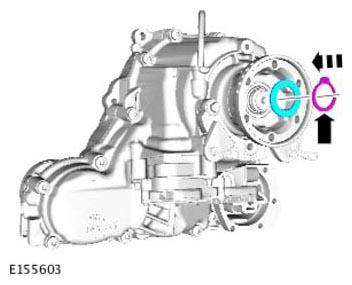

Select and install the smallest shim available.

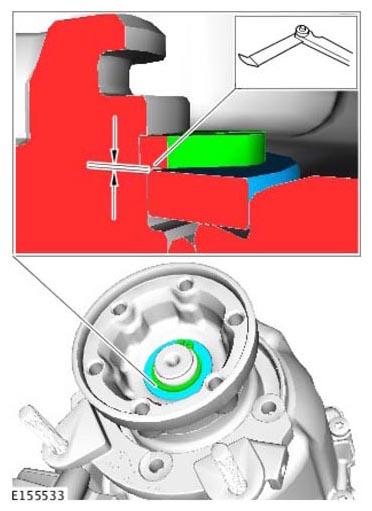

NOTE: The measured end-float tolerance for the rear output shaft is between 0.16mm and 0.3mm.
1. Use the following formula to calculate the required shim thickness:
- A = Measured clearance
- B = Selected shim thickness
- C = A+B
- C-0.16mm = Shim size required

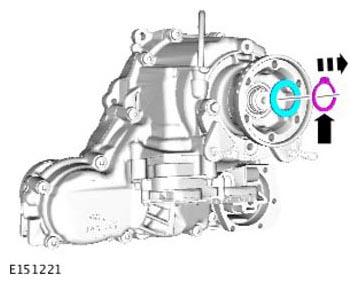

CAUTION: Only carry out this step if an adjustment is required.
CAUTION: Only carry out this step if an adjustment is required.

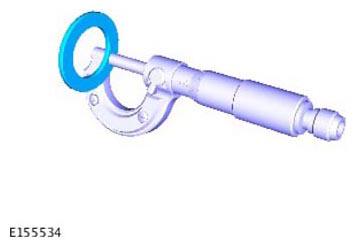

Select the required shim.

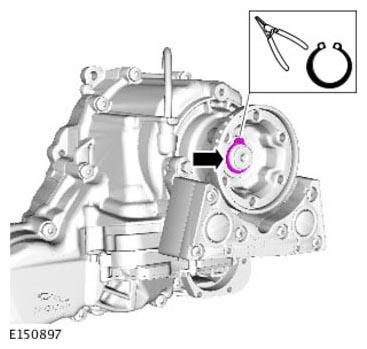

CAUTION: Only carry out this step if an adjustment is required.
CAUTION: Only carry out this step if an adjustment is required.

NOTE: The measured end-float tolerance for the rear output shaft is between 0.16mm and 0.3mm.
Refer to: INSTALLATION (Transfer Case).
Connect the battery ground cable.

Refer to: Battery Disconnect and Connect (General Procedures).
