Transfer Case (G1560537): Installation

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

NOTE: Clean all the mating faces and reusable parts thoroughly and check for damage.
- Lubricate input shaft splines with 'Weicon TL7391' grease.
NOTE: This step is only required if previously removed.

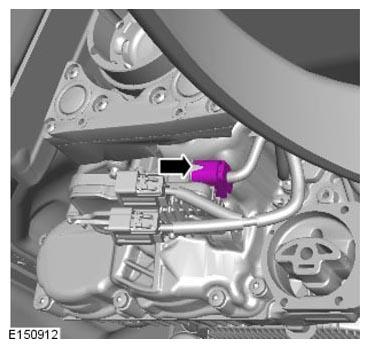

Install a new O-ring seal.

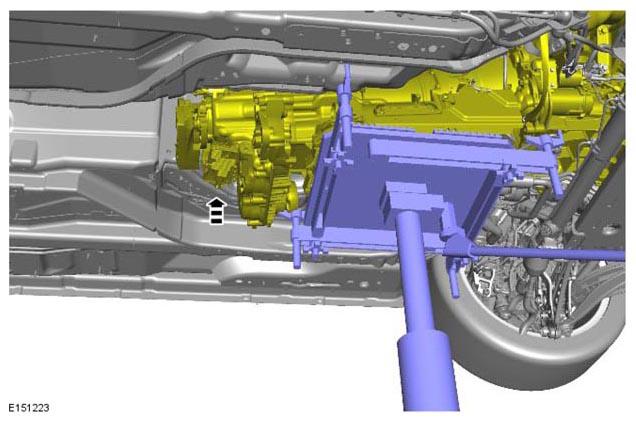

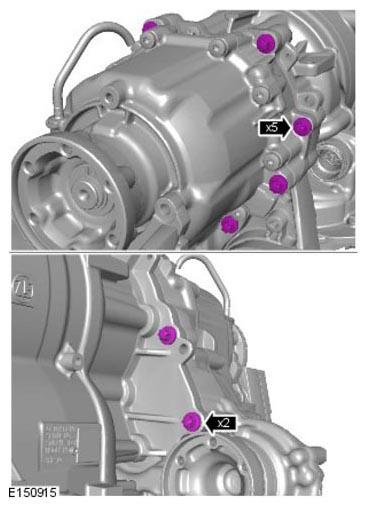

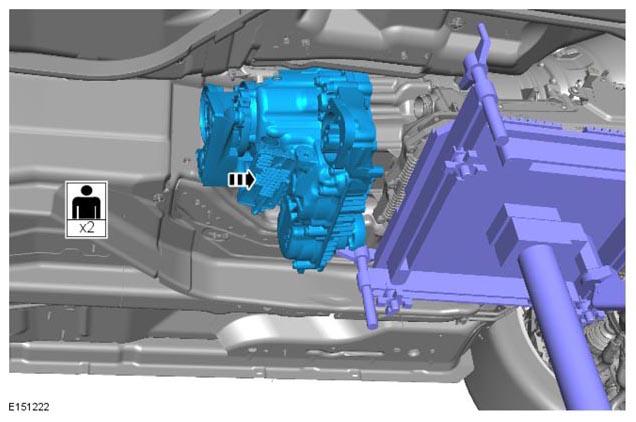

CAUTION: Make sure the transfer case bolts are installed in the correct orientation.

Torque Specification: 43 Nm

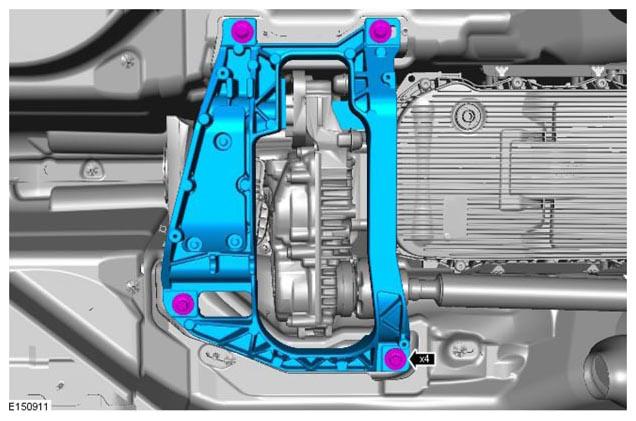

Torque Specification: 48 Nm

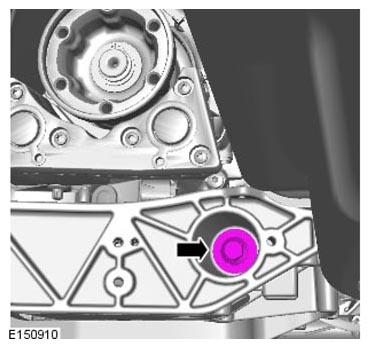

Torque Specification: 103 Nm

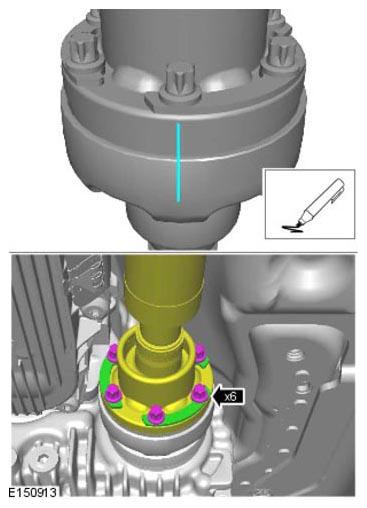

CAUTION:
- Make sure that new bolts are installed.
- The component must be aligned with the installation markings.
Torque Specification: 40 Nm
Install the rear driveshaft.
Refer to: Rear Driveshaft - AWD (Removal and Installation).
Refer to: Air Deflector (Removal and Installation).
Install the battery ground cable.

Refer to: Battery Disconnect and Connect General Procedures).
