Transfer Case Front Output Seal (G1569232): Installation

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

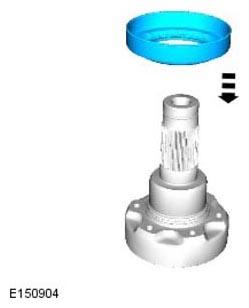

- Only carry out this step if a new output flange kit is being installed.
- Install a new flange kit if a seal failure occurs after 3 years or 60K miles.

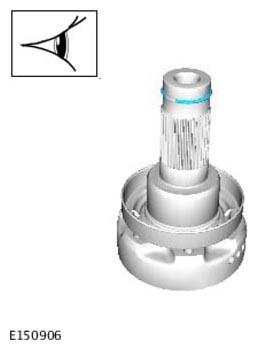

NOTE: Clean all the mating faces and components thoroughly and check for damage.
CAUTION: Oil seals must be installed dry.
- Clean the seal register.

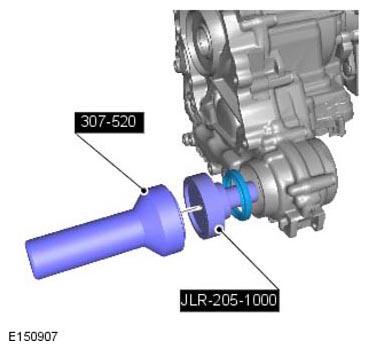

- Special Tool(s): JLR-205-1000, 307-520

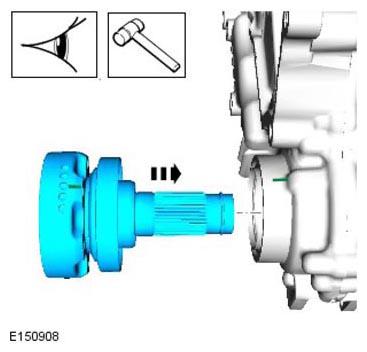

Refer to: INSTALLATION (Transfer Case).
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
