Transfer Case Connecting Sleeve Seals (G1560532): Installation
WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION: A new O-ring seal is to be installed.
-
CAUTION: Oil seals must be fitted dry.
- Clean the seal register.

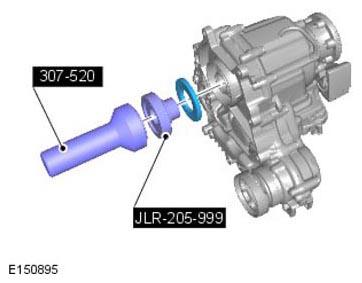

- Special Tool(s): 307-520
- Install the transfer case.
Refer to: INSTALLATION .
- Connect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
