Transfer Case Bush (G1573642): Removal

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Remove the transfer case.

    Refer to: INSTALLATION  (Transfer Case).

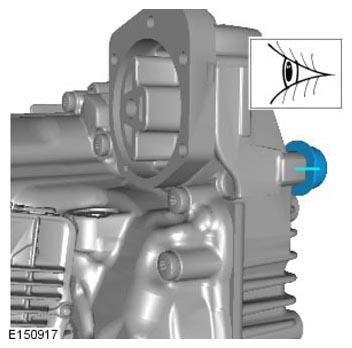

  4. G11292479

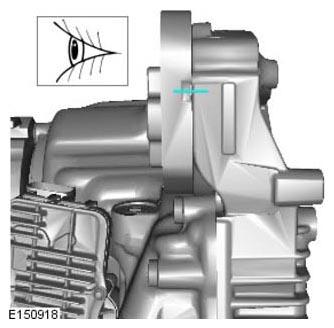

  5. G11292480

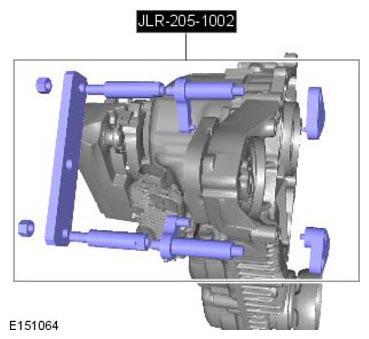

  6. G11292481

    Install the special tool as shown.

    Special Tool(s):  JLR-205-1002

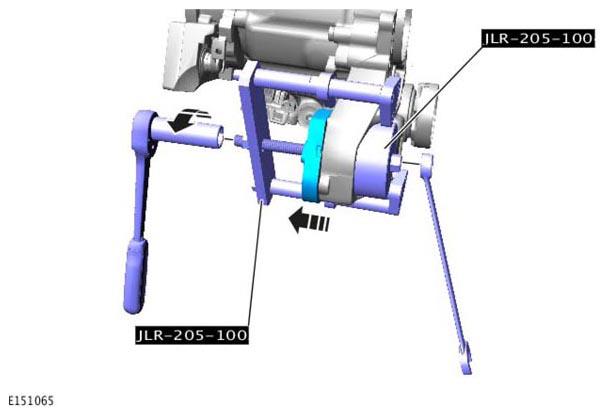

  7. G11292482
    • Using the special tools, press out the transfer case bush and discard.
    • Install the special tools as shown.

    Special Tool(s):  JLR-205-1002, JLR-205-1004

  8. Remove the special tools.
