Transfer Case Bush (G1573642): Installation

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all the mating faces and reusable parts thoroughly and check for damage.

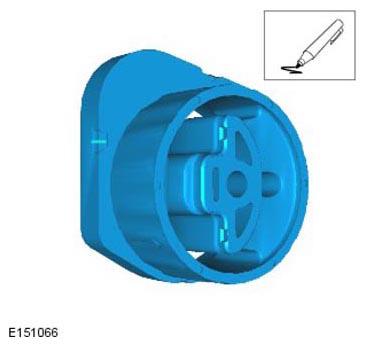

  2. G11292483

    Mark the new component in the same orientation as the original.

  3. CAUTION: The component must be aligned with the installation markings.
    NOTE: Apply water to lubricate the bushing.

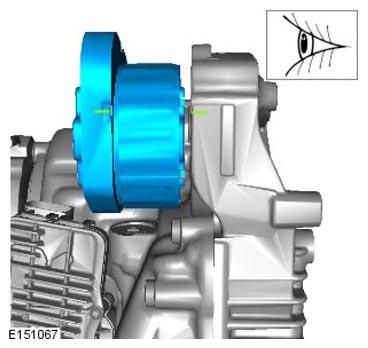

    G11292484

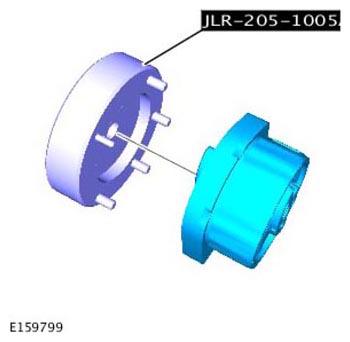

  4. CAUTION: Make sure the special tool is installed to the bush in the correct orientation.
    G11292485

    Special Tool(s):  JLR-205-1005A

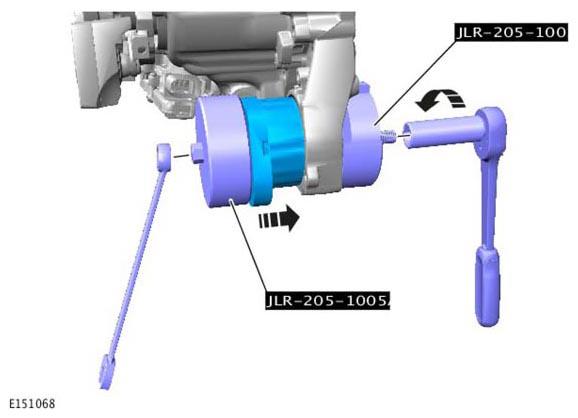

  5. G11292486
    • Using the special tools, install the transfer case bush.
    • Install the special tools as shown.

    Special Tool(s):  JLR-205-1003, JLR-205-1005A

  6. Remove the special tools.
  7. CAUTION: The component must be aligned with the installation markings.
    G11292479
  8. Install the transfer case.

    Refer to: INSTALLATION  (Transfer Case).

  9. Connect the battery ground cable.

Refer to: Battery Disconnect and Connect (General Procedures).
