Outer Constant Velocity (CV) Joint Boot (G1557132): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that a new component is installed.
    G11284265
    • Clean and inspect the components for deterioration.
    • Pack the outer CV joint with the grease supplied.
  2. NOTE: Make sure that the outer CV joint boot is correctly installed.
    G11284266

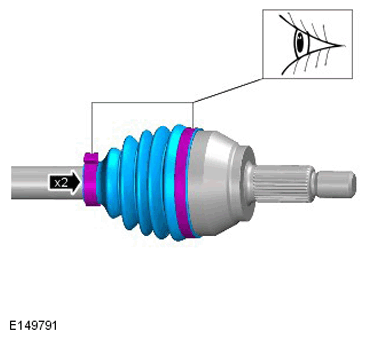

  3. NOTE: Make sure the retaining clips are correctly seated
    G11284267
  4. CAUTION: Make sure that a new component is installed.
    NOTE: Install new retaining clip.
    G11284247
  5. CAUTION: The component must be aligned with the installation markings.
    G11284248
  6. G11284243
  7. G11284271
  8. CAUTION: Pack the inner cv joint with the grease supplied.
    NOTE: Install new retaining clips.
    G11284251
  9. Refer to Front Halfshaft LH - Installation .

    Refer to Front Halfshaft RH - Installation .
