Front HALFSHAFT LH (G1569226): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

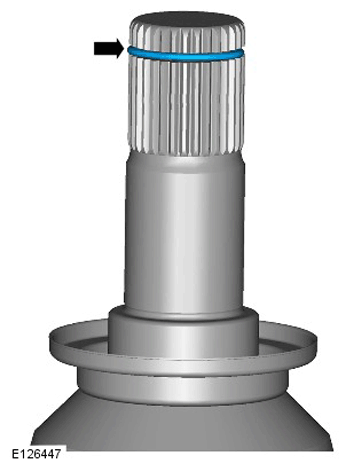

  1. CAUTION: Install a new snap ring.
    G11284282

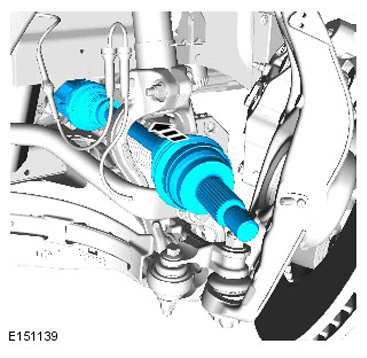

  2. CAUTION:
    • Make sure that the rear halfshaft circlip is installed correctly by pulling the halfshaft gently to make sure it is engaged.
    • Make sure no damage occurs to the halfshaft seal when installing the halfshaft.
    • To avoid damage to the halfshaft constant velocity (CV) joints and boots, do not allow the CV joints to exceed 18 degrees of travel.
    G11284283
  3. CAUTION: Make sure that a new nut is installed.
    G11284279

    Torque Specification: 90 Nm

  4. G11283774

    Torque Specification: 20 Nm

  5. G11284276
  6. G11283688
  7. CAUTION:
    • Make sure that a new nut is installed.
    • Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.
    G11283772

    Torque Specification: 300 Nm

  8. Refer to Wheel and Tire (Installation).
  9. Refer to Differential Draining and Filling (General Procedures).
