Inner Constant Velocity (CV) Joint Boot (G1557131): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that a new component is installed.
    NOTE: Install a new retaining clip.
    G11284247

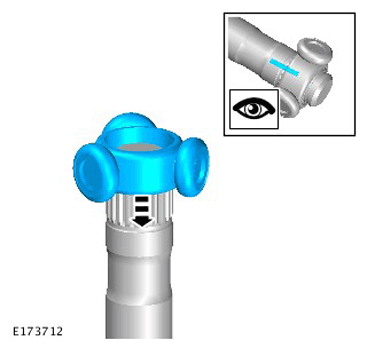

  2. CAUTION: The component must be aligned with the installation markings.
    G11284248
  3. G11284243

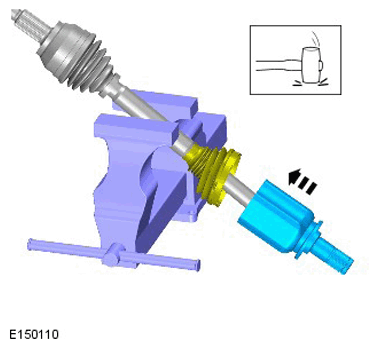

  4. NOTE: Using a suitable soft faced hammer, strike cv joint in the direction shown to install the shaft.
    G11284250
  5. G11284251
    CAUTION: Pack the inner cv joint with the grease supplied.
    NOTE: Install new retaining clips.
  6. Refer to Front Halfshaft LH - Installation  .

    Refer to Front Halfshaft RH - Installation .
