HALFSHAFT Seal (G1670899): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Oil seals must be fitted dry.

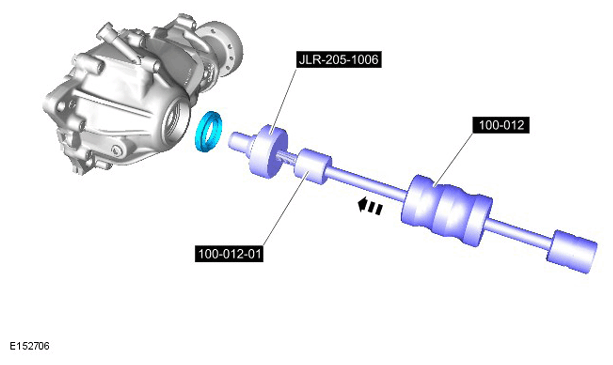

    G11284293

    Using the special tools, install a new halfshaft oil seal.

    Special Tool(s):  100-012, 100-012-01

  2. Refer to Front Halfshaft LH - Installation  .
