Input Shaft Seal (G1551379): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: INSTALLATION .
CAUTION: Be prepared to collect escaping fluids.

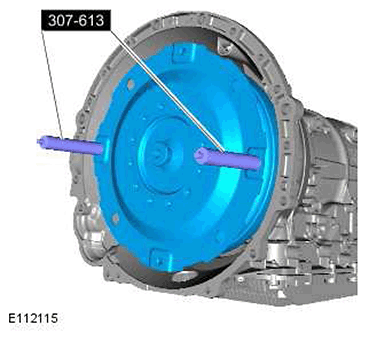

Special Tool(s): 307-613
CAUTION:
- Discard the seal.
- Take extra care to avoid damaging the seal register and running surface.
- Take extra care not to damage the edges of the component.

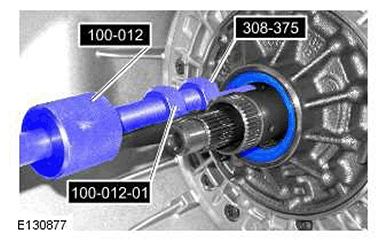

Special Tool(s): 100-012, 100-012-01, 308-375
