Transmission (G1578930): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.

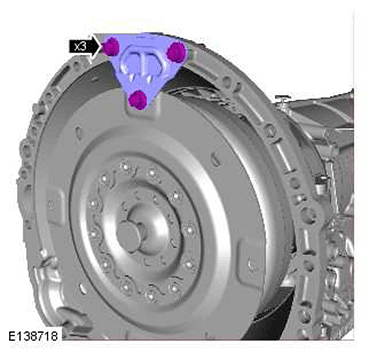

  1. NOTE: This step is only required if a new component is installed.
    G11417694
  2. NOTE: Make sure that the torque converter is fully engaged to the transmission.

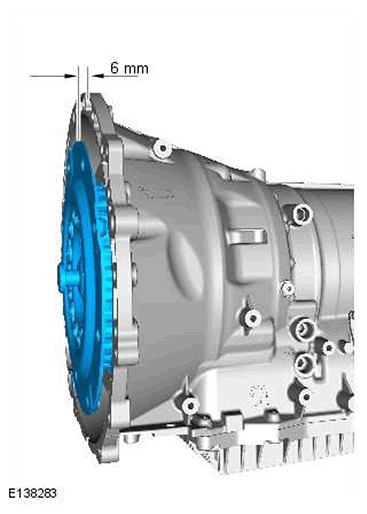

    G11417695
    • Secure the torque converter to the transmission using suitable cable ties.
  3. CAUTION: A new O-ring seal is to be installed.
    NOTE:
    • This step is only required if previously removed.
    • Clean all the mating faces and reusable parts thoroughly and check for damage.

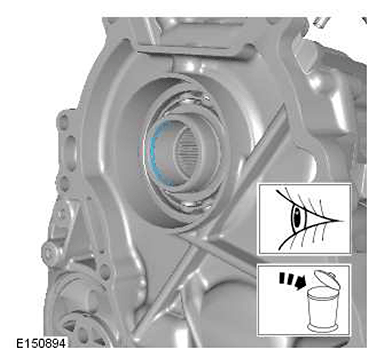

    G11417696
    • Lubricate input shaft splines with 'Weicon TL7391' grease.

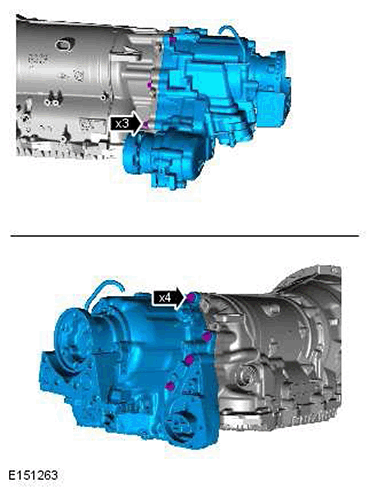

  4. G11417697

    Torque: 43 Nm

  5. NOTE: This step is only required if previously removed.

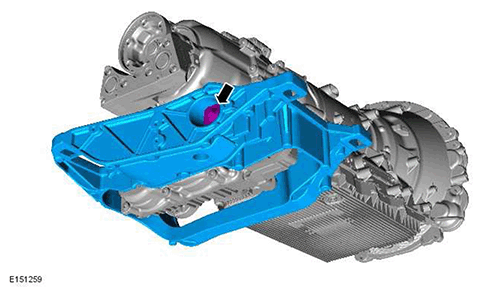

    G11417698

    Torque: 133 Nm

  6. NOTE: This step is only required if a new component is installed.

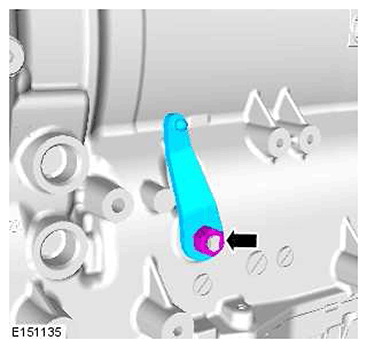

    G11417699

    Torque: 12 Nm

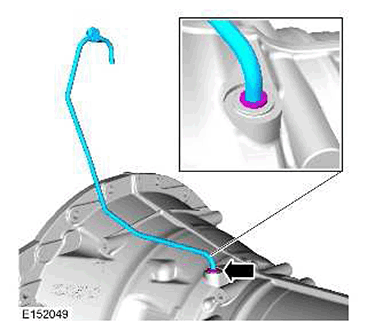

  7. CAUTION: To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The whie line around the circumference of the pipe should not be visible when correctly installed.
    G11417700
  8. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    CAUTION:
    • Make sure that the torque converter remains in the transmission.
    • Apply grease of the correct specification to the torque converter spigot.
    • Remove and discard the cable ties securing the torque converter

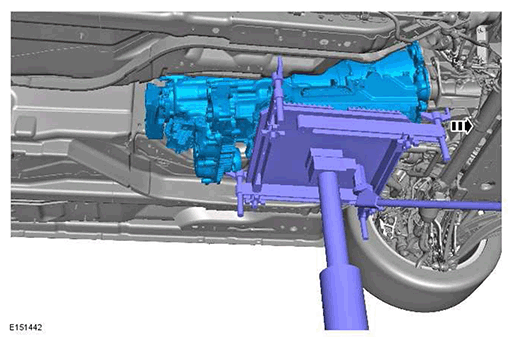

    NOTE: This step requires the aid of another technician.
    G11417701

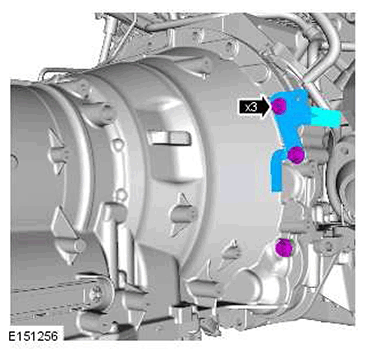

  9. G11417702

    Torque: 48 Nm

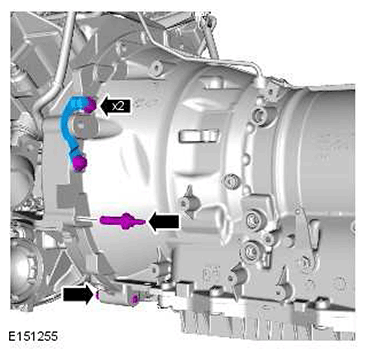

  10. G11417703

    Torque: 48 Nm

  11. CAUTION: If necessary, install new clips.

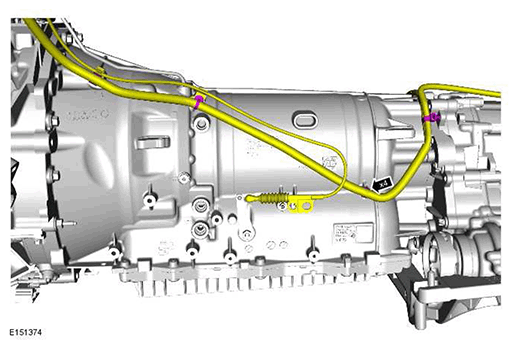

    G11417704
  12. CAUTION: If necessary, install new clips.
    G11417705

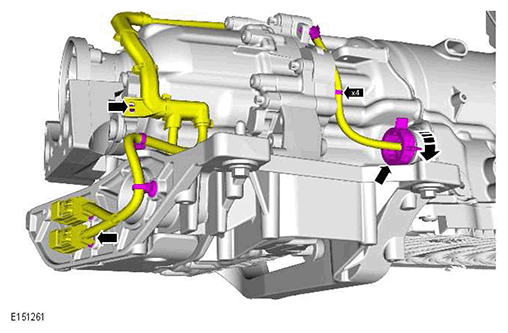

    • Remove and discard the 4 cable ties.

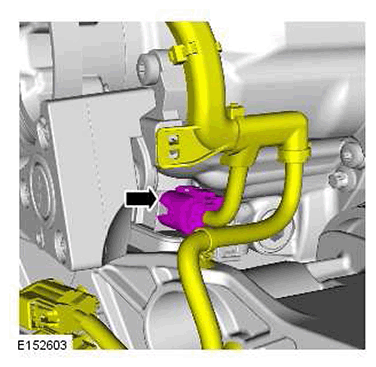

  13. G11417706
  14. NOTE: If necessary, install new clips.

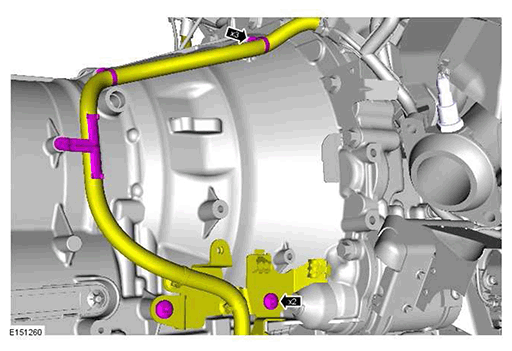

    G11417707

    Torque: 15 Nm

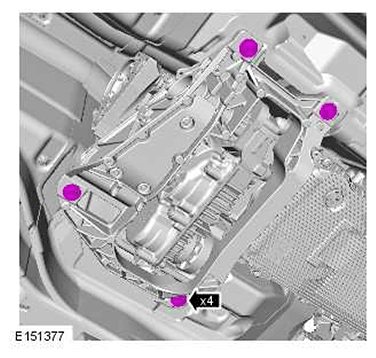

  15. G11417708

    Torque: 43 Nm

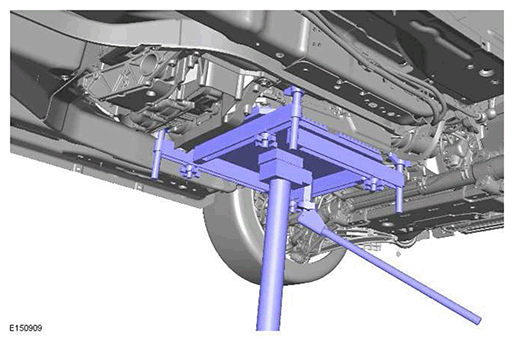

  16. G11417709

    Remove the jack supporting the transmission.

  17. G11417710

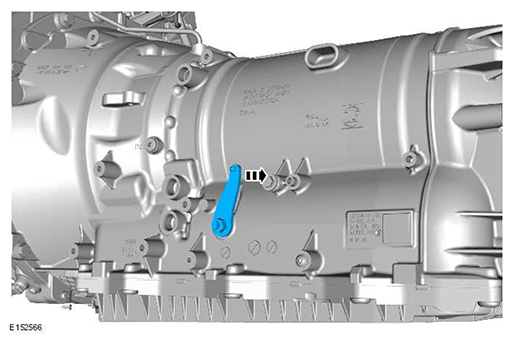

    • CAUTION: Secure with a cable tie.

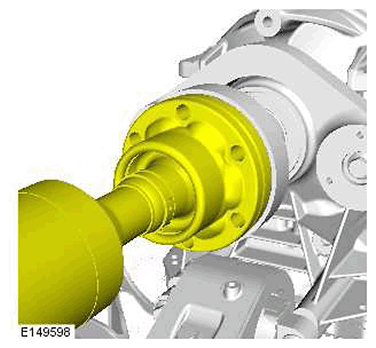

  18. G11417711
  19. CAUTION: Make sure that new bolts are installed.
    NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.

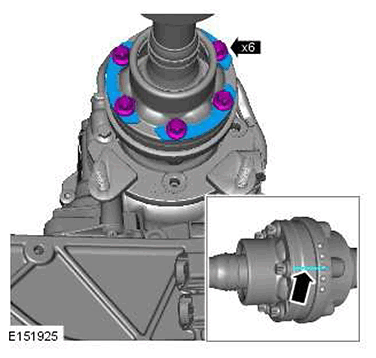

    G11417712

    Torque: 75 Nm

  20. CAUTION: Make sure that new nuts are installed.

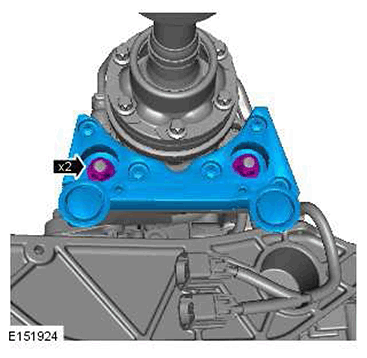

    G11417713

    Torque: 48 Nm

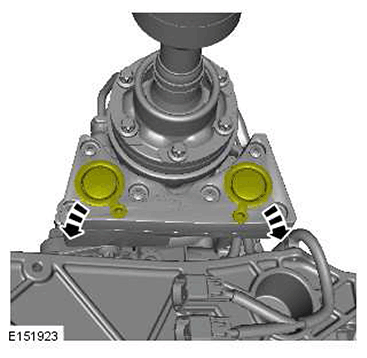

  21. G11417714

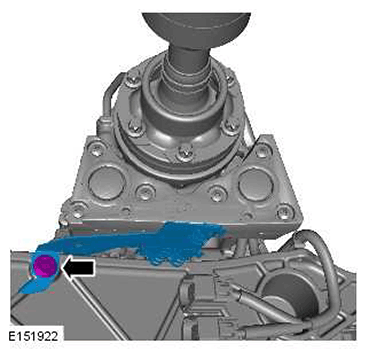

  22. G11417715

    Torque: 10 Nm

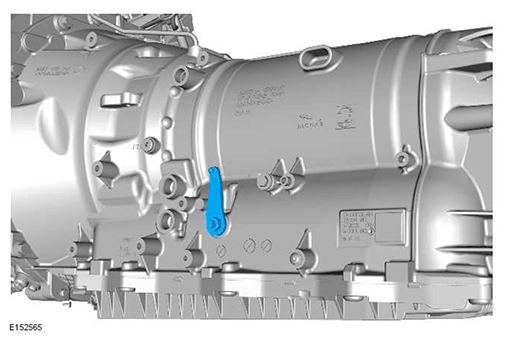

  23. G11417716
    • CAUTION: Remove the cable tie.

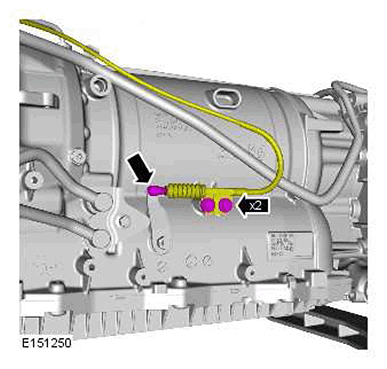

  24. G11417717

    Torque: 11 Nm

  25. CAUTION:
    • Make sure that new bolts are installed.
    • Only rotate the crankshaft clockwise.

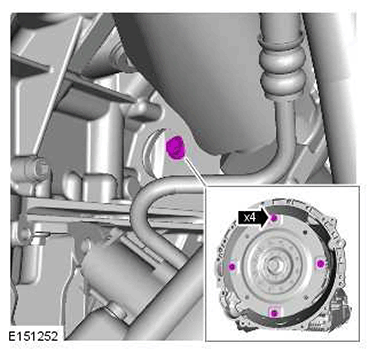

    G11417718

    Torque: 63 Nm

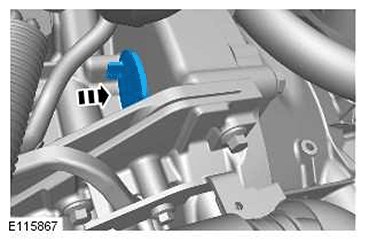

  26. G11417719
  27. CAUTION: Make sure that a new bolt is installed.

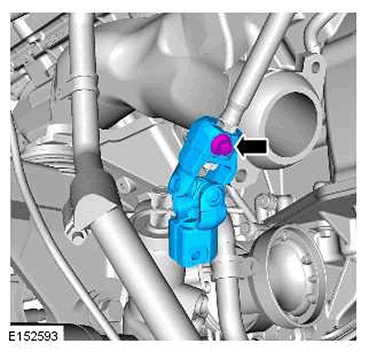

    G11417720

    Torque: 35 Nm

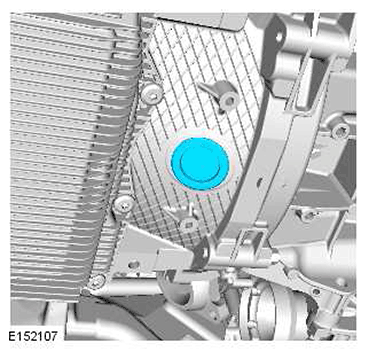

  28. G11417721
  29. CAUTION: If necessary, install a new clip.

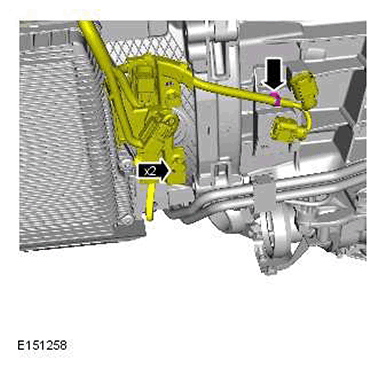

    G11417722

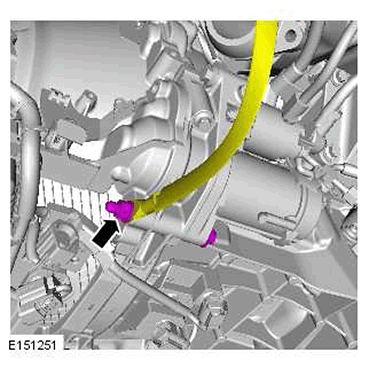

  30. G11417723

    Torque: 48 Nm

  31. CAUTION:
    • Install the new seals.
    • Be prepared to collect escaping fluids.

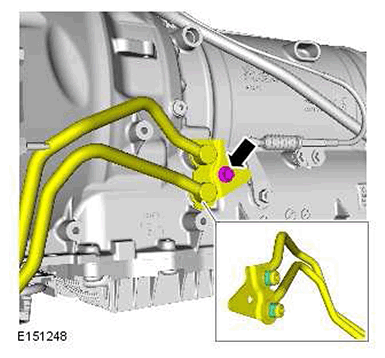

    G11417724

    Torque: 22 Nm

  32. CAUTION: If necessary, install a new clip.

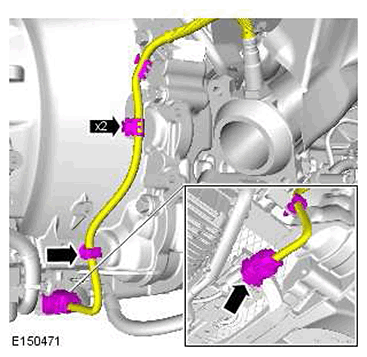

    G11417725

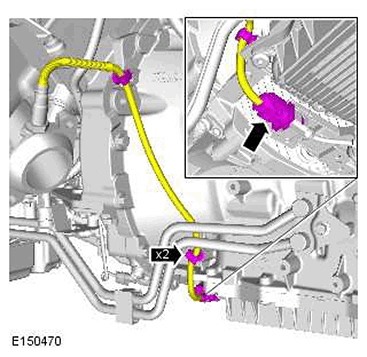

  33. CAUTION: If necessary, install a new clips.
    G11417726

  34. Refer to: Exhaust System - AWD (Installation).

  35. Refer to:FRONT DRIVESHAFT - AWD (G1578767) (Installation).

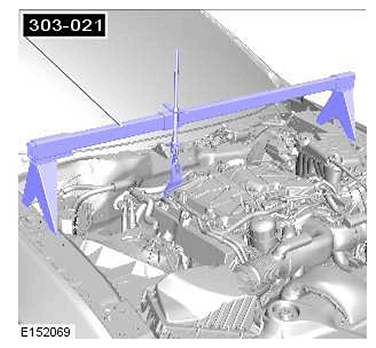

  36. G11417727

    Special Tool(s):  303-021

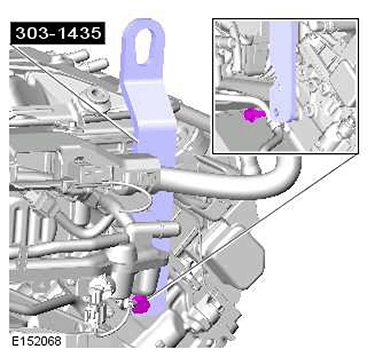

  37. G11417728

    Special Tool(s):  303-1435

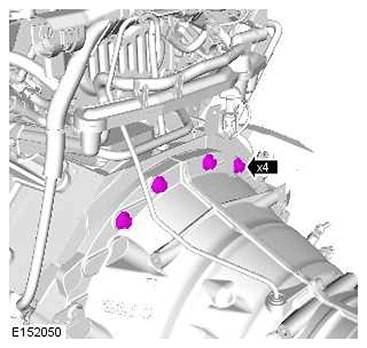

  38. G11417729

    Torque: 48 Nm

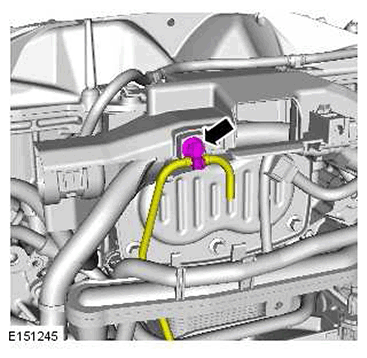

  39. G11417730
  40. Refer to: Cowl Vent Screen (Installation).
  41. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Installation).
  42. Reconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  43. Check and top-up the transmission fluid level.

    Refer to: Transmission Fluid Level Check (V6 S/C 3.0L Petrol/RWD, General Procedures).
