Input Shaft Seal (G1551379): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

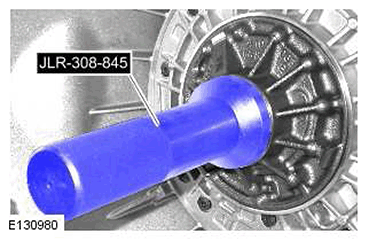

  1. CAUTION:
    • Install a new seal.
    • Care must be taken to avoid damage to the seal register and running surface.
    G11417573

    Special Tool(s):  JLR-308-845

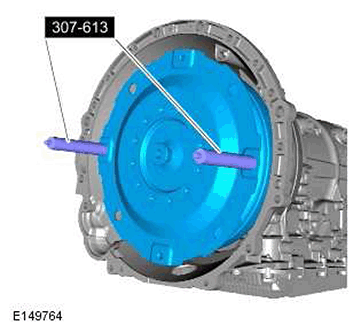

  2. G11417574

    Special Tool(s):  307-613

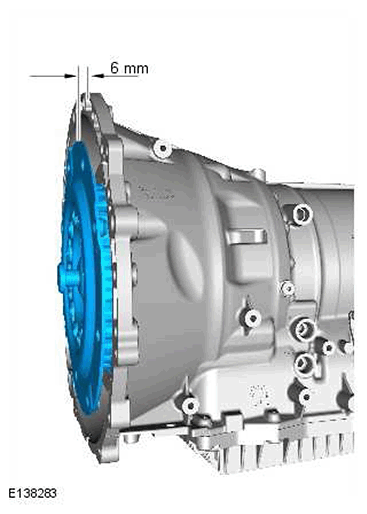

  3. CAUTION: Make sure the torque converter is fully located into the oil pump drive.
    G11417575
  4. Refer to: INSTALLATION .
  5. Refer to: Battery Disconnect and Connect (General Procedures).
