Timing Chain (G1550167): Installation
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION:

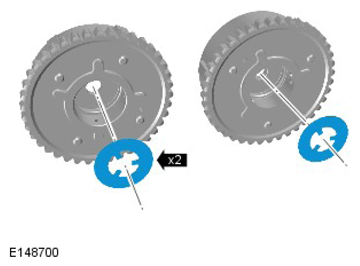

- Install a new friction washer.
- Prior to installing the timing components, making sure that the crankshaft is at the top dead centre (TDC) cylinder 1.
-
CAUTION:

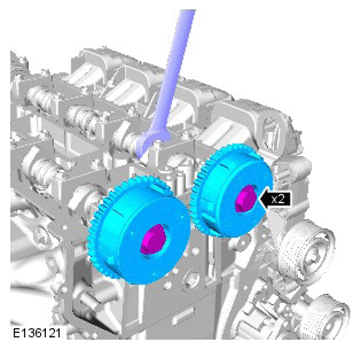

- Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

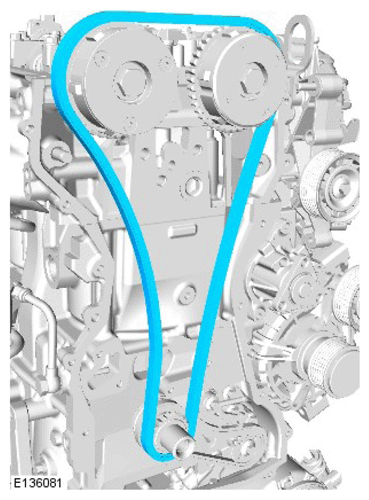

- Make sure that these components are installed to the noted removal position.

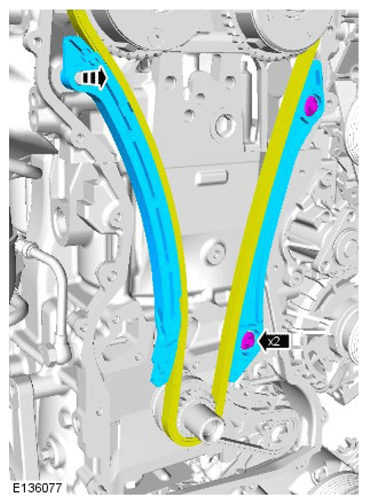

- Only tighten the bolts finger-tight at this stage.
Torque Specification: 10 Nm

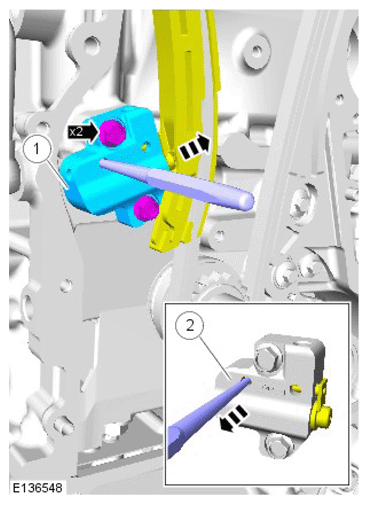

Torque Specification: 10 Nm
-

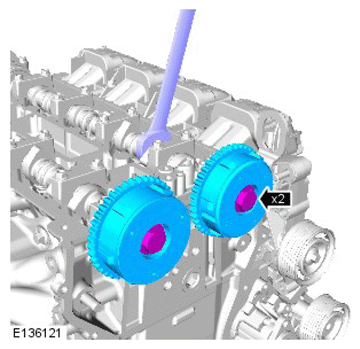

CAUTION: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.
Torque Specification: 72 Nm
- Refer to: Timing Cover (Installation ).
- Refer to: Battery Disconnect and Connect (General Procedures).
