Balance Shaft Assembly (G1550151): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: When removing the sealant from the mating faces, make sure that crankshaft rear seal mating face is not damaged.

    Make sure that all traces of the old sealant are removed from the mating faces.

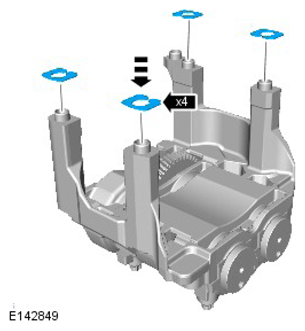

  2. G11418225
  3. NOTE: Tighten the retaining bolts in the sequence illustrated.

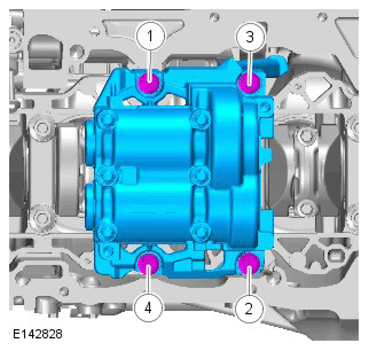

    G11418226

    Torque Specifications:

    Stage 1: 25 Nm

    Stage 2: 42 Nm

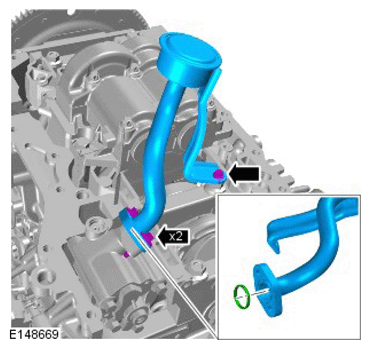

  4. G11418227

    Torque Specification: 10 Nm

  5. Refer to: Oil Pan (Installation ).
