Engine Oil Vacuum Draining and Filling: Filling

WARNING: This page is about a different car, the 2011 Jaguar XKR175, 2011 Jaguar XKR, and 2010 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Install new O-ring seals.
  1. Lubricate the oil filter element O-ring seal with clean engine oil.
    G00559111
    2. CAUTION: Tighten the component finger tight first.
  2. Torque: 25 Nm

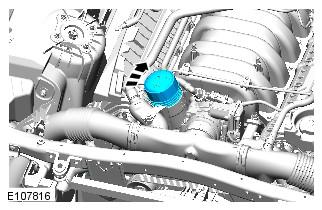

    G00559112
    3. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps 7-11), before starting the engine.
  4. See figure.

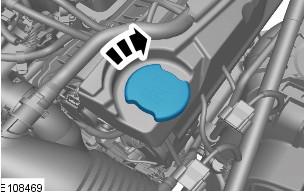

    G00559113
    5. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.
  5. Follow the Steps 7-11 before starting the engine.
    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
    7. CAUTION: Make sure that the selector lever and the gearshift mechanism are in the park (P) position.

    Make sure that the hood is open.

  7. Turn the ignition on.
  8. Scroll through the trip menu to access the engine oil level display.

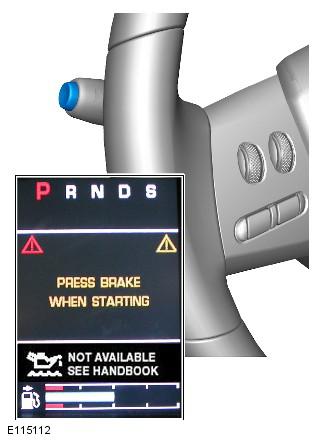

    G00559114
  9. Press the cruise control cancel button twice within 2 seconds.
    G00559115
    • The message center display will revert to the normal display in the trip computer.
    • Scroll through the trip menu to access the engine oil level display.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step 6), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
    G00559116
    11. NOTE: If instructed to follow Steps 7-11 in a previous step, return to Step 6 and continue the procedure.
  11. Turn the ignition off.
  12. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
    13. NOTE: The following steps are to update the average oil level value.
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    G00559149
  14. The message center display will revert to the normal display in the trip computer.
  15. Turn the ignition off.
  16. Turn the ignition on.
    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.

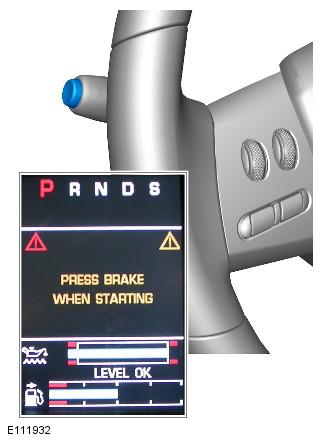

    G00559118
  18. Refer to: ENGINE COVER .
