Engine (V8 5.0L Petrol): Removal: Engine

Special Tool(s)

	303-1435 Engine Lifting Brackets Rear
	303-1436 Engine Lifting Bracket Front

1. Refer to Battery Disconnect And Connect information.
WARNING: Make sure to support the vehicle with axle stands.
2. Raise and support the vehicle.
3. Refer to Cowl Vent Screen information.
4. Refer to Air Cleaner Outlet Pipe T-Connector information.
5. Refer to Transmission information.
6. Refer to Cooling System Draining And Vacuum Filling information.
7. Refer to Engine Oil Draining And Filling  information.
8. Evacuate the air conditioning (A/C) system.

   Refer to Air Conditioning (A/C) System Recovery, Evacuation And Charging information.

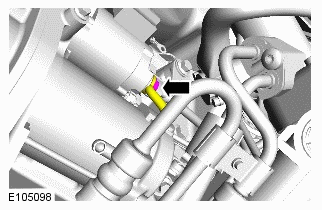

9. See figure

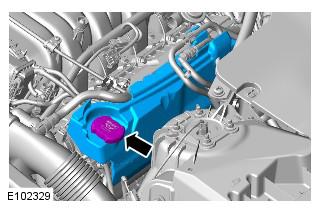

10. See figure

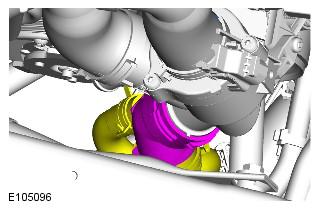

11. See figure

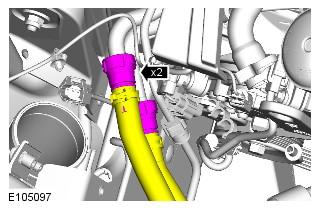

12. See figure
13. Refer to Hood information.

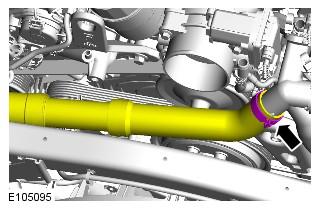

14. See figure
15. See figure
16. Engine Lifting Brackets Rear (303-1435)

    Engine Lifting Bracket Front (303-1436)

17. See figure
18. See figure
19. See figure
20. See figure
21. See figure
22. See figure
23. See figure
24. See figure
25. See figure
26. See figure
27. See figure
28. See figure
29. See figure
30. See figure
CAUTION: Be prepared to collect escaping fluids.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.
31. See figure
32. See figure
33. See figure
34. See figure
35. See figure
36. See figure
37. See figure
CAUTION: Take extra care when handling the component.
NOTE: This step requires the aid of another technician.
38. Remove the engine support.
NOTE: This step requires the aid of another technician.
39. Using a suitable tool, remove the engine.
