Automatic Transmission/Transaxle (V8 5.0L Petrol/V8 S/C 5.0L Petrol): Installation: Transmission
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)
| 303-1436 Engine Lifting Bracket Front |
- Remove the torque converter retainer.
- Torque: 45 Nm
- Torque: 45 Nm
- Remove the support.
- Torque: 127 Nm
- Make sure that the alignment mark is visible through the inspection hole on installation of the first torque converter bolt.
- Torque: 45 Nm

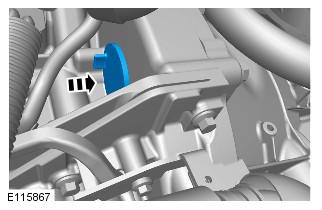

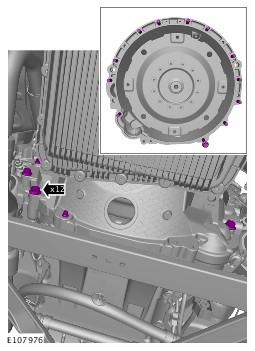

- See figure
- See figure
- See figure
- See figure
- Torque: 10 Nm
- See figure
- See figure
- Torque: 48 Nm
- Torque: 6 Nm
- Torque: 40 Nm
- See figure
- Remove the special tool supporting the engine.
- Special Tool(s): Engine Lifting Bracket Front (303-1436)
- See figure
- Refer to Catalytic Converter information.
- Refer to Transmission Fluid Cooler Tubes information.
- Refer to Battery Disconnect And Connect information.
CAUTION:
Make sure that the torque converter remains in the transmission.
NOTE:
This step requires the aid of another technician.
CAUTION:
Only rotate the crankshaft clockwise.
