Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
Raise and support the vehicle.
Refer to: Supercharger (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Camshaft RH (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Exhaust Manifold (303-01A, Removal and Installation).

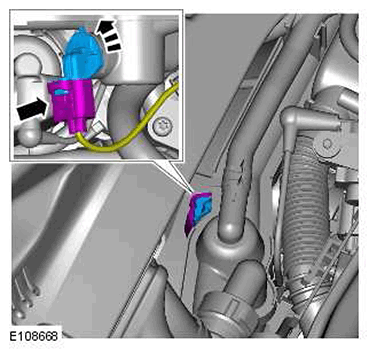

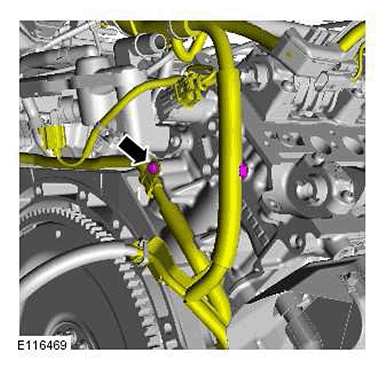

CAUTION:
- Discard the seal.

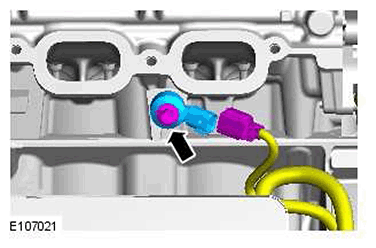

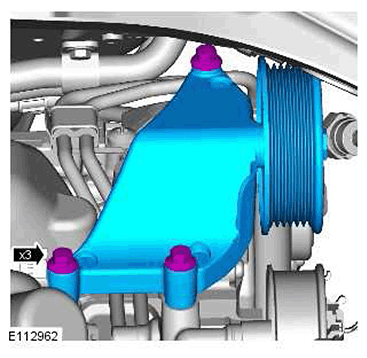

- LH illustration shown, RH is similar.

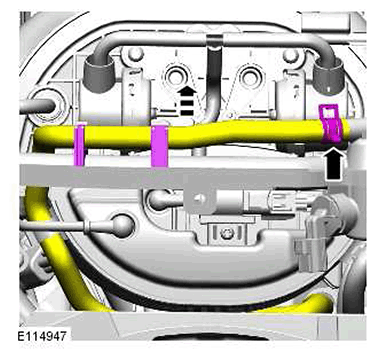

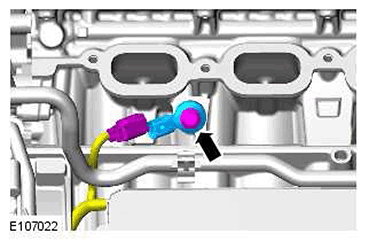

NOTE: Engine shown removed for clarity.

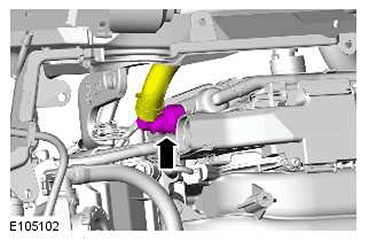

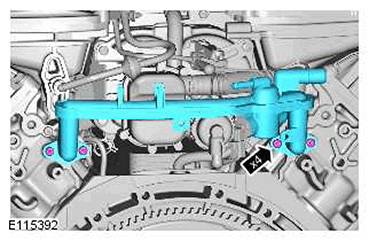

NOTE: Clamp the hose to minimize coolant loss.

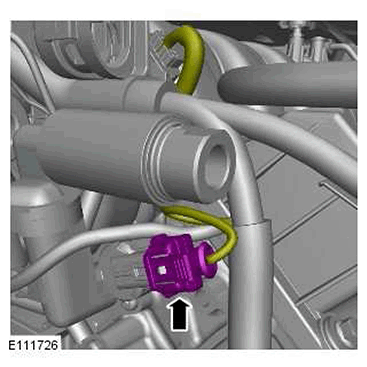

NOTE: Clamp the hose to minimize coolant loss.
CAUTION: Discard the seals.

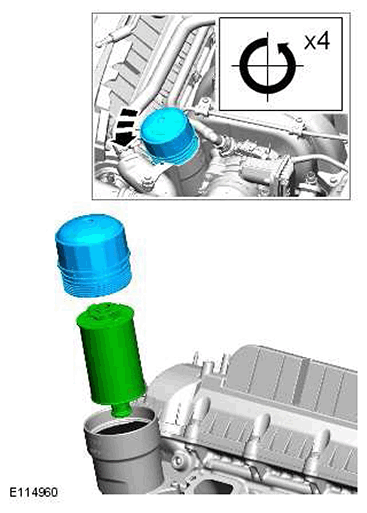

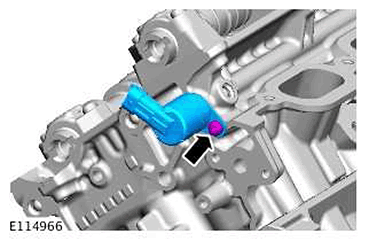

NOTE: Remove and discard the O-ring seal.

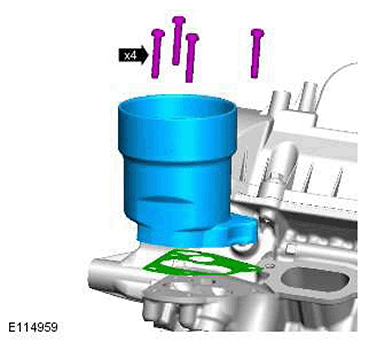

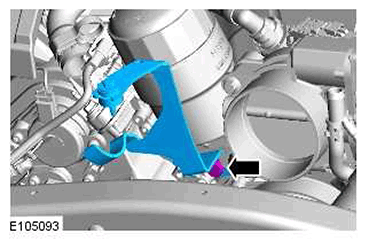

NOTE: Discard the gasket.
CAUTION:

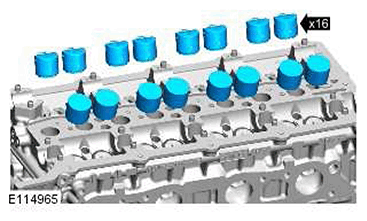

- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.

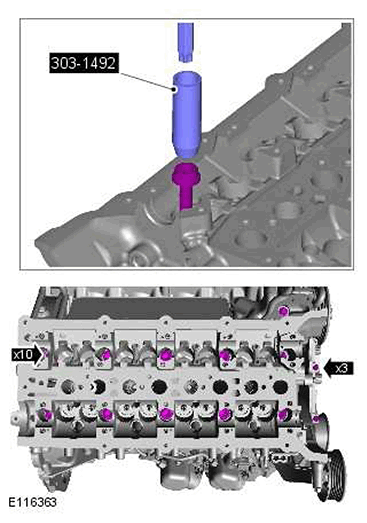

CAUTION: Discard the bolts.

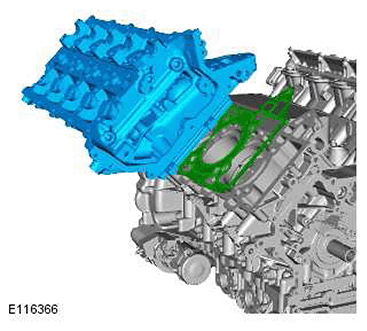

NOTE: Discard the gasket.
