Exhaust Manifold
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

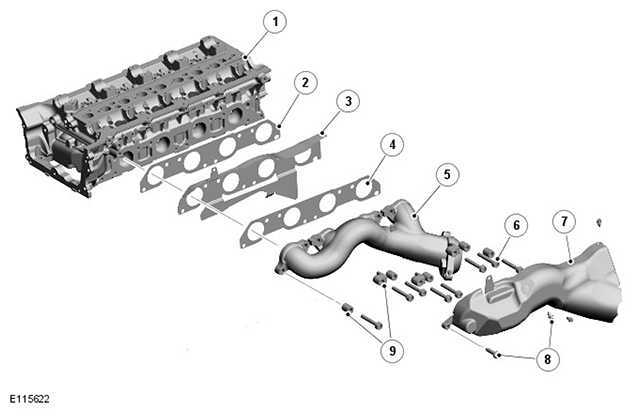

LH (B bank) installation shown, RH (A bank) installation similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head |
| 2 | Gasket |
| 3 | Heat shield |
| 4 | Gasket |
| 5 | Exhaust manifold |
| 6 | Bolt (8 off) |
| 7 | Heat shield |
| 8 | Bolt (4 off) |
| 9 | Spacer (8 off) |
The high SiMo (silicon molybdenum) cast iron exhaust manifolds are unique for each cylinder bank. Each exhaust manifold installation includes two metal gaskets and two heat shields. Spacers on the securing bolts allow the manifolds to expand and contract with changes of temperature while maintaining the clamping loads.
