Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: An acceptable flatness of the cylinder head is 0.1mm.

NOTE: For cylinder head with distortion above the maximum allowance, the cylinder head material must be measured.

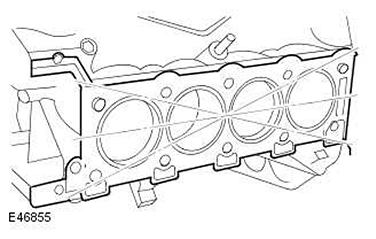

Check cylinder head face for distortion, across the center and from corner to corner.

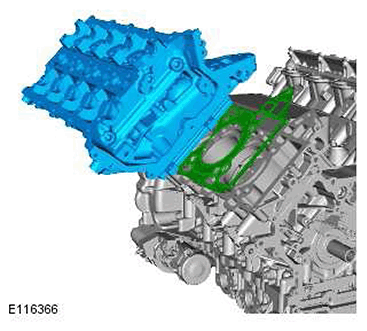

WARNING: Make sure care is taken when handling the cylinder head gasket.

NOTE: Install a new gasket.

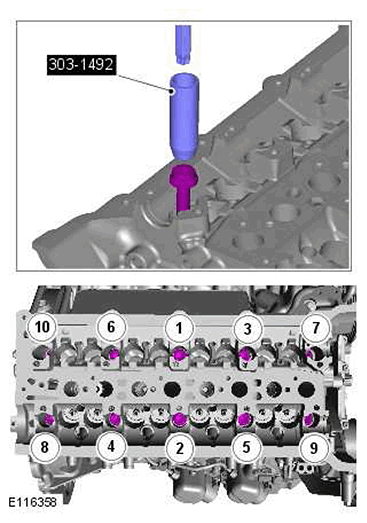

CAUTION: Make sure that new cylinder head bolts are installed.

Torque: 20 Nm
Torque: 35 Nm
Tighten the bolts 1 to 10, a further 90 degrees.
Tighten the bolts 1 to 10, a further 120 degrees.
Torque: 25 Nm
Torque: 12 Nm
CAUTION:

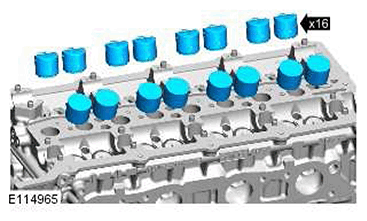

- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
Lubricate the valve tappets with clean engine oil.
NOTE: Install a new gasket.
CAUTION: A new O-ring seal is to be installed.

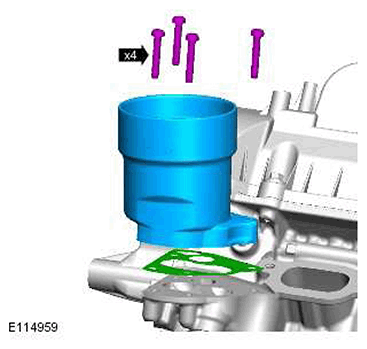

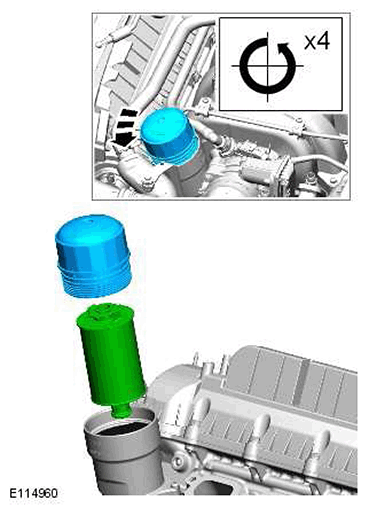

NOTE: Install a new engine oil filter.

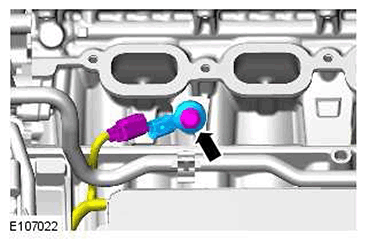

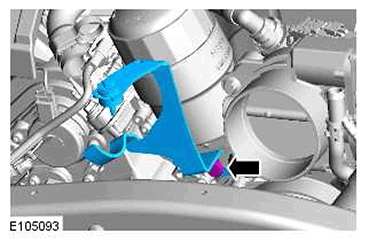

Torque: 12 Nm

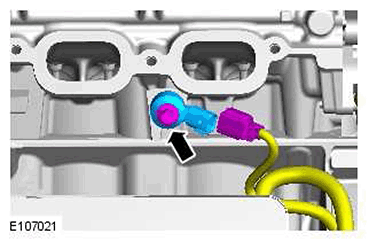

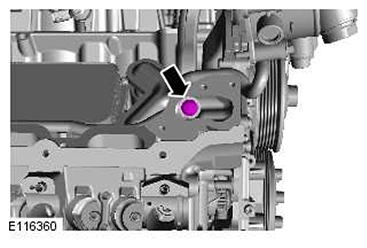

Torque: 20 Nm

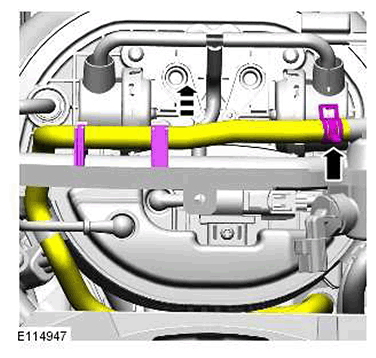

Torque: 20 Nm

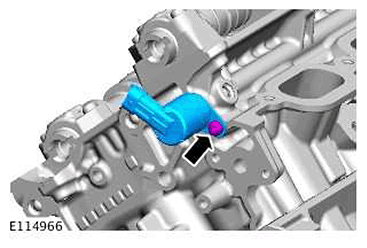

CAUTION: Install the new seals.

Torque: 10 Nm

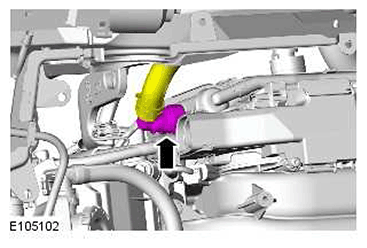

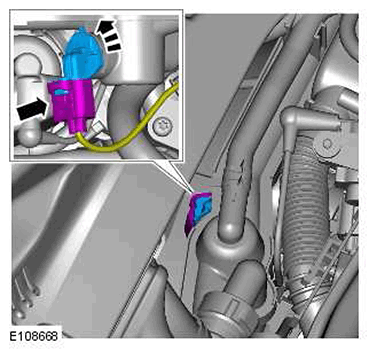

NOTE: Clamp the hose to minimize coolant loss.

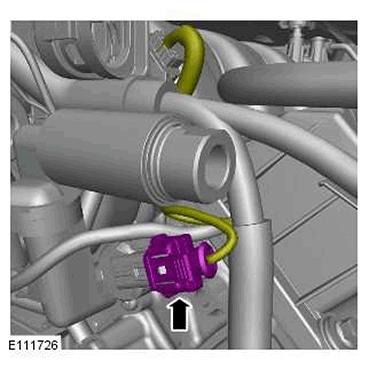

NOTE: Clamp the hose to minimize coolant loss.

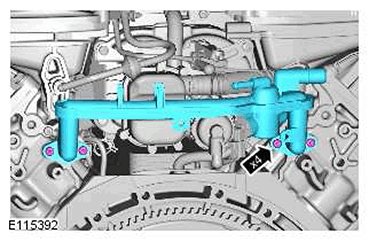

CAUTION: Install a new seal.

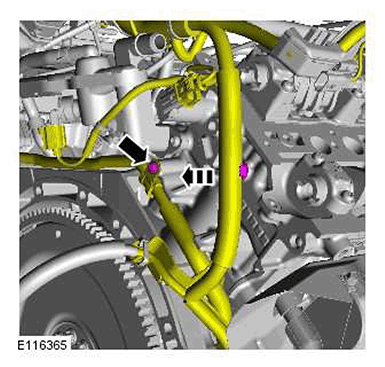

Torque: 12 Nm

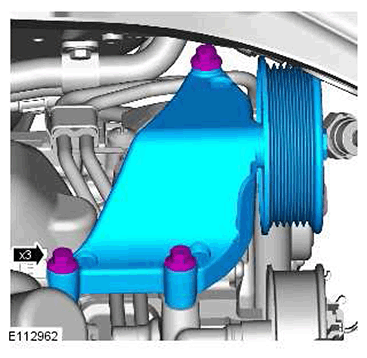

Torque: 25 Nm
Torque: 25 Nm
Refer to: Exhaust Manifold (303-01A, Removal and Installation).
Refer to: Camshaft RH (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Supercharger (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 26.
