Air Suspension Compressor: Installation

CAUTION: Make sure mounting bushes and springs are in the correct orientation. Failure to follow this instruction will cause the compressor to become noisey and may cause damage to the vehicle.

Fig 1: Installing Compressor Support Brace & 3 Nuts

Courtesy of JAGUAR CARS, INC.

Locate compressor to mounting bracket.
- Install compressor support brace.
- Install the 3 nuts and tighten to 20 Nm.
Install air feed pipe to compressor filter.

Fig 2: Air Feed Pipe
Courtesy of JAGUAR CARS, INC.
Connect the electrical connector.

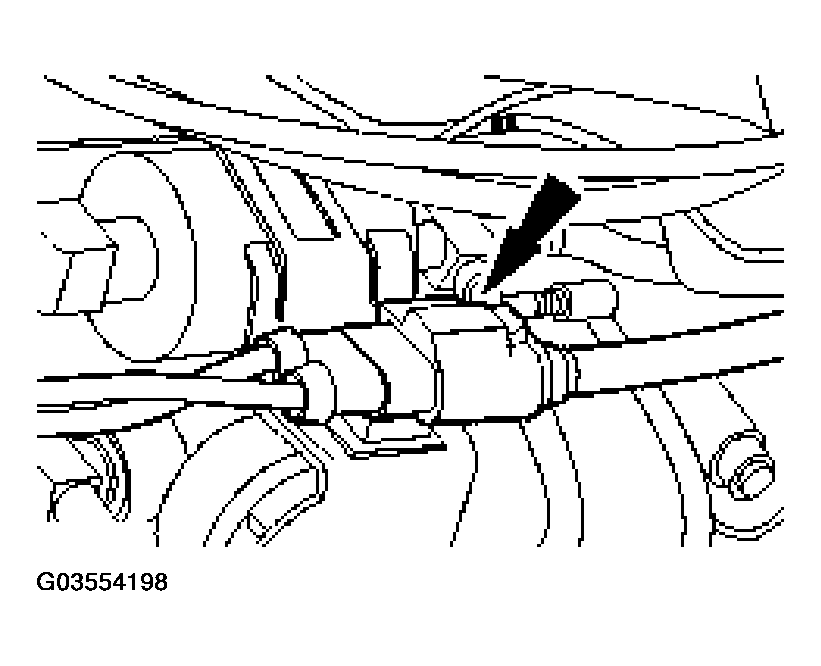

Fig 3: Connecting Electrical Connector
Courtesy of JAGUAR CARS, INC.

NOTE: Make sure the pipe is routed correctly.

Fig 4: Pushing Air Pipe Into Union

Courtesy of JAGUAR CARS, INC.

Remove blanking plug from compressor.
- Push air pipe firmly into union.
Connect the electrical connector.

Fig 5: Connecting Electrical Connector
Courtesy of JAGUAR CARS, INC.
Install the radiator splash shield.
For additional information, refer to RADIATOR SPLASH SHIELD .
Connect the battery ground cable.
For additional information, refer to BATTERY CONNECT .
